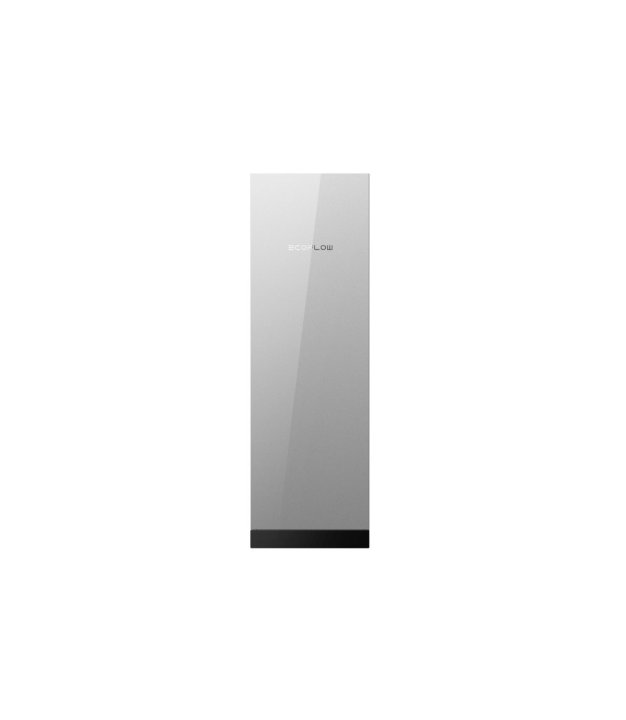

EcoFlow Smart Home Panel 3 (32 Circuits)
$3,299.00

EcoFlow Smart Home Panel 3 (32 Circuits)

In Stock SKU: EFSMARTHOMEPANEL3-32-US
$3,299.00
EcoFlow Smart Home Panel 3 (32 Circuits)
Regular Discount
Plan Discount
Subtotal
You Saved Today
Short Description
Have questions? Expert help just one click away Contact Us

Product Description

This is where EcoFlow stops being portable power and becomes home infrastructure. The Smart Home Panel 3 sits between the grid and thirty-two of your circuits, switches them to battery the moment the power drops, and meters every branch continuously so you can see and control exactly what your stored energy is going to.

What's in the box

  • EcoFlow Smart Home Panel 3, 32 circuits ×1
  • EcoFlow Smart Inlet Box ×1
  • Smart Inlet Box connection cable, SP6 to SP6 ×1
  • Mark-off template ×1
  • Warranty card ×1
Not included — sold separately
  • DELTA Pro Ultra inverter and batteries
  • Circuit breakers
  • Electrician labour and permits

This panel stores no energy on its own — it switches and meters circuits fed by a DELTA Pro Ultra system, and it must be installed by a licensed electrician.

Not sure what else you need? Call the Satmodo team on (619) 238-0205 and we will check it against your setup.

Specifications

Load branches32 circuits — eight at 90 A, twenty-four at 60 A
Rated input120/240 V and 120/208 V, 60 Hz
Maximum continuous input160 A
EnclosureNEMA 3R, rated for outdoor installation
Overvoltage categoryIV
Operating temperature−22 °F to 122 °F (−30 °C to 50 °C)
Metering accuracy0.5% on the main circuit, 1% per branch
ConnectivityBluetooth, Wi-Fi, Ethernet, CAN and RS485
CertificationUL 67, UL 869A, UL 916, UL 1741
NoiseUnder 40 dB
Weight88.8 lb (40.3 kg)
Dimensions14.4 × 7.4 × 45.3 in (365 × 188 × 1150 mm)
Warranty10 years

Specifications from EcoFlow's published product data, cross-checked against the Smart Home Panel 3 installation guide (model EF-SHP-32).

What makes it different from a transfer switch

A transfer switch moves a few critical circuits onto backup and leaves the rest dark. This panel handles thirty-two of them at 120/240 V, which for most houses is the whole panel — and because it meters each branch, you can shed a dryer or an EV charger from your phone and stretch the battery through a longer outage instead of running blind.

What you need alongside it

A DELTA Pro Ultra or DELTA Pro Ultra X inverter and its batteries supply the stored energy; the panel is the switching, metering and control layer. It also integrates with EcoFlow's PowerPulse EV charger. Installation is a licensed-electrician job — the enclosure is NEMA 3R and usually goes on an exterior wall next to the existing service.

Who buys this one

Homeowners in areas where outages run days rather than hours, people on well water who lose their water supply with their power, and anyone who has looked at a standby generator and would rather have something silent, fuel-free and controllable from a phone.

Where people use it

Whole-home circuits backed up automatically — Home backup
Home backup Whole-home circuits backed up automatically
Solar and storage working together — Storm preparedness
Storm preparedness Solar and storage working together

Common questions about whole-home backup

It works alongside it. The Smart Home Panel 3 sits between the grid and the circuits you want backed up, switching them to battery when the power fails and metering every one of them continuously. A licensed electrician handles the tie-in.

Thirty-two — eight rated at 90 A and twenty-four at 60 A. In practice that is enough to cover an entire typical home rather than the handful of circuits a transfer switch gives you.

Yes. The panel is the switching and metering layer; the stored energy comes from a DELTA Pro Ultra or DELTA Pro Ultra X inverter and its batteries. It also works alongside an EcoFlow PowerPulse EV charger.

Yes — it is a 120/240 V panel, so well pumps, ranges, dryers and central air can all sit behind it, subject to your system's total output. That is the main thing it does that a portable station cannot.

The enclosure is NEMA 3R and rated from −22 °F to 122 °F, so an exterior wall is a normal installation. Most installs sit beside the existing meter and main panel.

Per-circuit power, continuously, at 1% accuracy — so you can see exactly which circuits are draining the battery during an outage and shed them from the app rather than guessing at the panel.
