9603 SBD Transceiver
(813) 922-8999
Iridium 9603 SBD Developer Kit
Previous

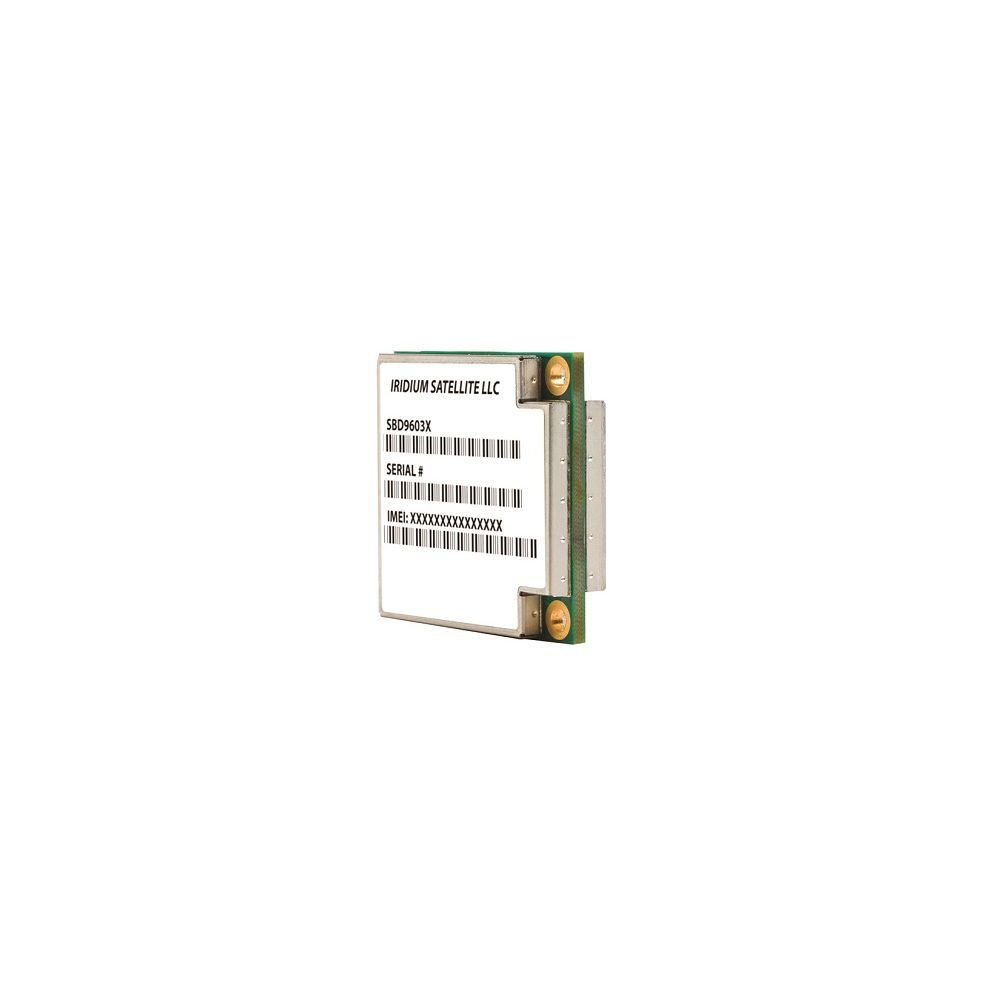

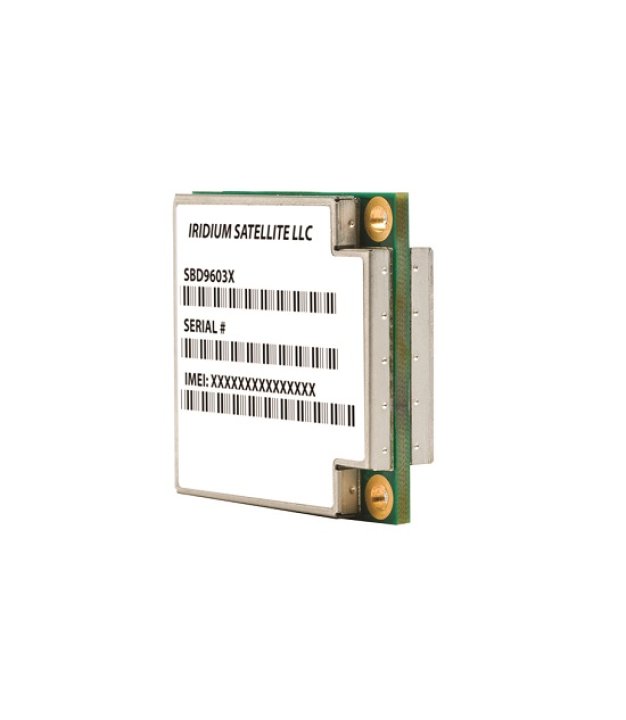

The Iridium 9603 SBD Transceiver provides extremely reliable satellite phone, from pole to pole, by combining the worldwide coverage of the Iridium satellite network with the low latency of the Iridium SBD (Short Burst Data) Service. 9603 is perfect for applications with tight space constraints, like monitoring, tracking, and alarm systems, and it’s very affordable. The Iridium 9603 transceiver broadens the worldwide Iridium user base by delivering two-way communications on an impressive scale.
Iridium 9603N Transceiver Features
The 9603N transceiver is an ideal developer's solution for applications such as M2M, Asset Monitoring, transport, and personal tracking. The Iridium 9603N transceiver combines the global coverage of the Iridium satellite constellation with the low latency of the Iridium Short Burst Data (SBD) service.
| SPECIFICATIONS | |
| Mechanical | |
| Length: 31.5 mm | |
| Width: 29.6 mm | |
| Depth: 8.1 mm | |
| Weight: 11.4 g | |
| Environmental | |
| Operating temperature range: -40ºC to +85ºC | |
| Operating humidity range: _ 75% RH | |
| Storage temperature range: -40ºC to +85ºC | |
| Storage humidity range: _ 93 % RH | |
| RF Interface | |
| Frequency range: 1616 to 1626.5 MHz | |
| Duplexing method: TDD (Time Domain Duplex) | |
| Input/output impedance: 50_ | |
| Multiplexing method: TDMA/FDMA | |
| Power | |
| Supply input voltage range: 5.0V +/- .5V DC | |
| Supply input voltage ripple: <40mV pp | |
| Idle Current (peak): 156mA | |
| Idle Current (average): 34mA | |
| Transmit Current (peak): 1.3 A | |
| Transmit Current (average): 145mA | |
| Receive Current (peak): 156mA | |
| Receive Current (average): 39mA | |
| SBD message transfer - average current: 158mA | |
| SBD message transfer - average power: <= 0.8 W |
| SKU | 9603-SBD-TRAN |
|---|---|
