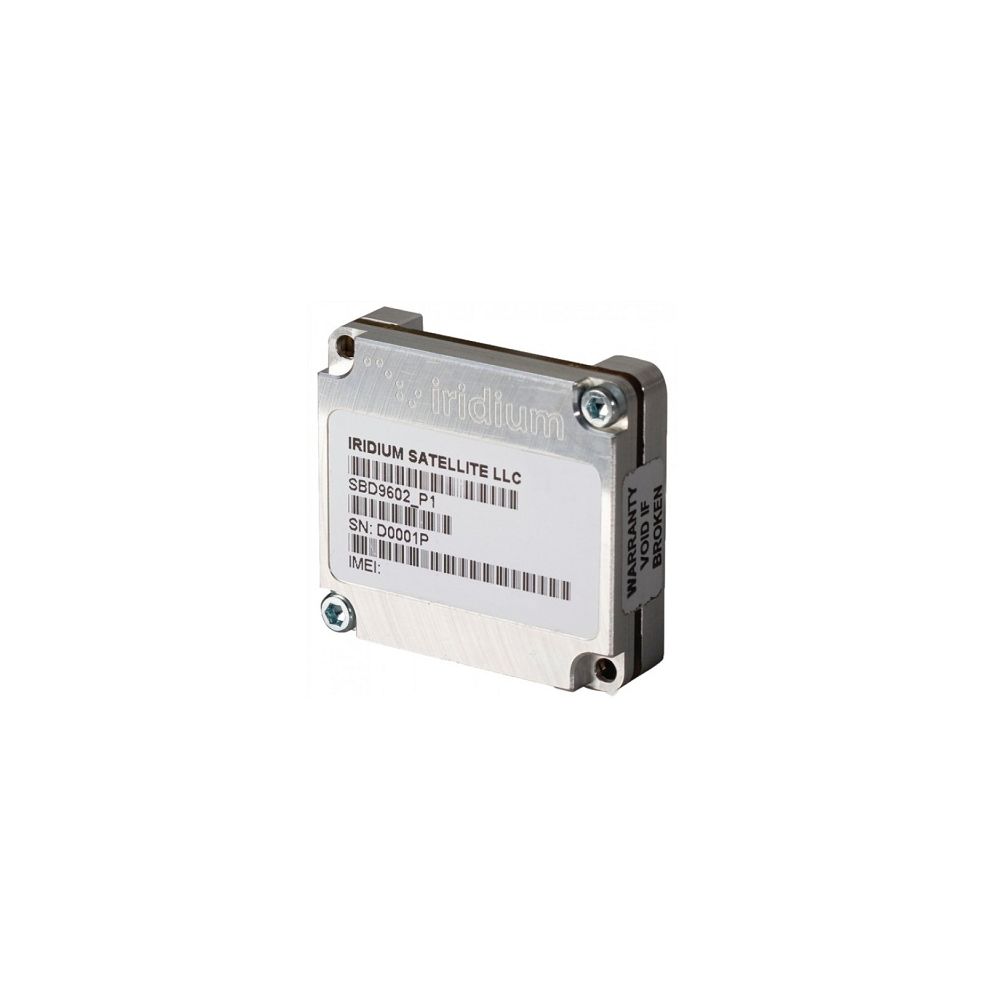

main product photo

9602 SBD Developer Kit

$2,199.00
In stock
SKU
9602-SBD-DEV-KIT
No available addons found.
Wish List Compare
Same day delivery
Hassle Free Returns
24/7 Support
(813) 922-8999
ComCenter II - Outdoor Previous ComCenter II - Outdoor
Details

The Iridium 9602 SBD Transceiver is designed to be integrated into a larger hardware or software application or solution.  The Iridium 9602 is perfect for Machine-to-Machine (M2M) solutions, like maritime vessel tracking, monitoring equipment, or an automated vehicle locating service.

The Iridium 9602 SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution for a specific application or vertical market. The Iridium 9602 is ideal for M2M solutions, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.

The Iridium 9602 SBD transceiver, designed to be integrated into a wireless data application with other host system hardware and software, provides a complete solution for a specific application or vertical market. The Iridium 9602 is ideal for M2M solutions, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.

Iridium's global, low latency SBD service is the ideal solution for monitoring everything from containers and trucks to planes and ships. It is integrated by Iridium's Value Added Resellers into vertical market applications in industries such as Oil & Gas, Rail, Maritime, Aeronautical, Utilities, and Government/Military.

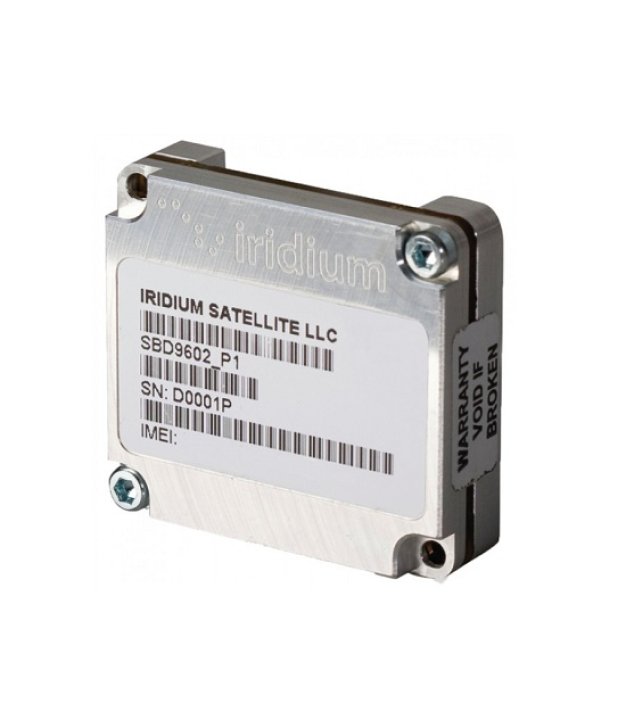

The Iridium 9602 is a single-board transceiver provided as a black box transceiver module. All device interfaces are provided by a single multi-pin interface connector, in addition to the antenna connector. Only the core transceiver is provided with the 9602. All other end user Field Application functions such as GPS, microprocessor-based logic control, digital and analog inputs, digital and analog outputs power supply, and antenna must be provided by the solution developer. The device interface across the user connector consists of a serial-data interface, DC power input, network available output, and a power on/off control line. The Iridium 9602 does not incorporate, nor require, a Subscriber Identity Module (also known as a SIM Card) to be inserted into the Transceiver. The Iridium 9602 is intended to be used as a transceiver module fitted within another host system.
IN THE BOX
Iridium 9602 SBD Transceiver
Test Interface Board
AC/DC Power Supply
CD-ROM Documentation
SPECIFICATIONS
Single board transceiver
Small form factor
No SIM card
Designed to be incorporated into an OEM solution
RoHS compliant
Mechanical Dimensions
Length 41.0 mm
Width 45.0 mm
Depth 13.0 mm
Weight 30 g
Environmental Specifications
Operating Temperature Range -40ºC to + 85ºC
Operating Humidity Range 75% RH
Storage Temperature Range -40ºC to + 85ºC
Storage Humidity Range 93% RH
RF Parameters
Frequency Range 1616 MHz to 1626.5 MHz
Duplexing Method TDD (Time Domain Duplex)
Input/Output Impedance 50
Multiplexing Method TDMA/FDMA
DC Power Input
Idle Current (average) 45mA
Idle current (peak) 195mA
Transmit Current (peak) 1.5A
Transmit Current (average) 190mA
Receive Current (peak) 195mA
Receive Current (average) 45mA
SBD message transfer – average current 190mA
SBD message transfer – average power 1.0W
