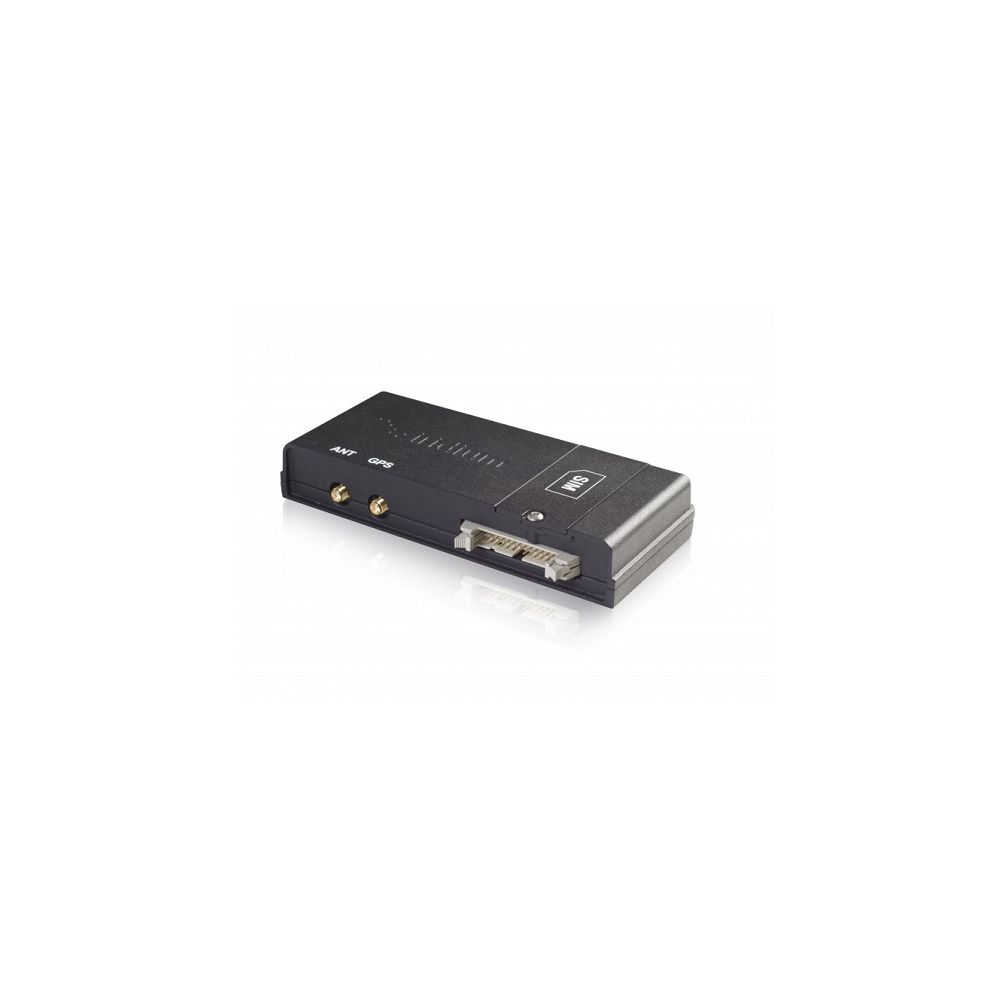

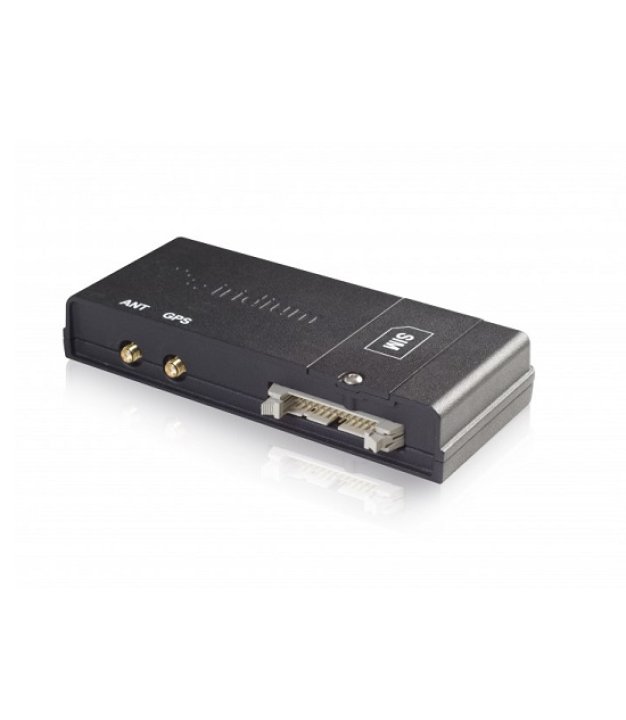

The Iridium 9522B Satellite Transceiver is Iridium’s 2nd generation satellite transceiver. The 9522B allows for sending and receiving both voice and data from anywhere on the planet. It supports all of Iridium’s voice and data services and can integrate with a host of applications through its built-in RS232 serial interface and an AT command set.
The 9522B Satellite Transceiver is ideal for registered Iridium partners that want to incorporate the transceiver into a larger solution or application, like a maritime phone system or a vehicle tracking solution.
Integrated Solution
The Iridium 9522B Satellite Transceiver is Iridium’s second-generation satellite transceiver for truly global voice and data communications. Compact, versatile and powerful, it’s ideal for sending and receiving voice and data from equipment everywhere on the planet.
Smaller and lighter than the 9522A, the 9522B is available to registered Iridium VAMs and VARs and is ideal for partners who need a satellite transceiver to incorporate into a final Iridium subscriber solution for a specific application or vertical market. It easily integrates into a wide variety of applications through an RS232 serial interface and AT command set.
The 9522B can be integrated into a variety of Iridium subscriber products, or retrofitted into existing 9522A-based products. It is provided as a “black box” – core transceiver module and SIM card reader – along with a
260-way 0.1" pitch connector interface for analog audio, control/digital audio, RS232, power input, and on/off. All other functions and hardware must be provided by the solution developer.
The 9522B is a functional replacement to the 9522A, although the mechanical design and electrical connectors differ. Connection adaptors are available to enable the 9522B to be used in place of the 9522A. A pass-through connector allows a GPS receiver to use the same antenna as the 9522B LBT.
| SKU | 9522B-SAT-TRAN |
|---|---|
| Use physical product data | No |
| Item Returns | This item can be returned |
