Iridium Marine Antenna Mount
The Iridium Fixed Mast External Antenna is designed for use with all Iridium handsets and GO! devices including the Iridium 9505, 9505A, 9555, 9575 and the Iridium GO!.
The Iridium Fixed Mast External Antenna broadens the reception of your Iridium handset or GO! devices and delivers the clarity and performance you need for permanent land-based or marine applications.
(813) 922-8999
Hunting Bundle Iridium 9555 Bundle + 200 Min Card
Previous

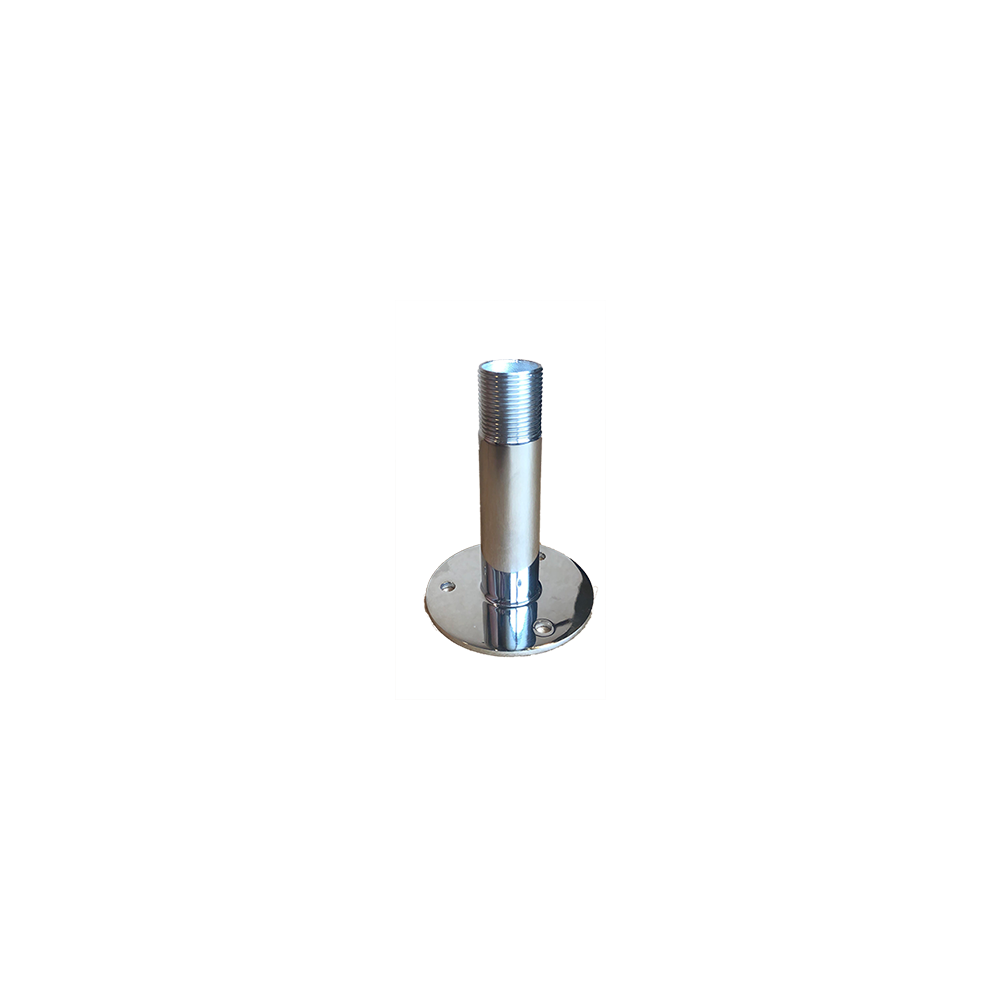

Straight Mount 4 inch high, 1 inch -14 thread stainless steel mount. Perfect for radar arches. Can be used with Style 4363 extension mast.
- Antenna Mount
- 4" tall
- Stainless steel
- 1"-14 threaded mount
Iridium Fixed Mount Antenna with Mounting Kit
The Iridium Fixed Mast Antenna can be used with all Iridium Satellite phones including the Iridium Extreme 9575, Iridium 9555, Iridium 9505A, Iridium 9505, and Iridium 9500. Also can be used with the Iridium GO! Wifi Device. This antenna will give the Iridium satellite phone better reception then the standard antenna on the phone. This mast antenna can be used with internet terminals and docking stations as well.
*This antenna includes mounting kit for installation.
The Iridium Fixed Mast Antenna is perfect for any situation that requires an Iridium satellite phone to be use in an area without a clear view of the sky. This fixed mast antenna extends the reception of the satellite phone and delivers exceptional reception performance for permanent in-building or marine applications when no ground plane is available.
To install this antenna is simple, mount the antenna so it can see the sky and run a single antenna cable from the antenna to the Iridium satellite phone.
This antenna requires Cable and Antenna Adapter.
Product Specification
- Diameter: 7.6 cm (3.0 in)
- Height: 16.3 cm (6.4 in)
- Weight: 312 grams (11 oz)
- Connector: TNC Female
- Mount type: 3/4' thread (U-bolt version)
- Finish: Weatherable Polymer White
- Operating Temperature: -40 C to +85 C
- Altitude: 20,000 feet
- Impedance: 50 ohms
- VSWR: <2.0:1
- Frequency: 1616—1626 MHz
- Polarization: Right hand circular
- Axial Ratio: 3 dB Max
- Power Handling: 1 Watt
Radiation Pattern
- 0.4 dBic: 0 = 0
- 1.4 dBic: 0 < Zenith < 45
- -0.25 dBic: 75 < Zenith < 82
The Iridium Fixed Mast Antenna is designed for use with the all Iridium Satellite Series portable phones including the Iridium 9500, 9505, 9505A and 9555. The fixed mast antenna extends the reception of the handheld phone and delivers exceptional reception performance for permanent in-building or marine applications when no ground plane is available. The Iridium Fixed Mast Antenna is perfect for a boat or house or any situation that requires an Iridium satellite phone to be use in an area with out a clear view of the open sky. Installation is simple; all you have to do is mount the antenna so it can see the sky and run a single antenna cable from the antenna to the Iridium phone. This antenna will give the Iridium satellite phone better reception then the standard antenna on the phone. The base of the antenna requires Standard 1" - 14 male threads for the mount of your choice.
The Iridium Fixed Mast Antenna is designed for use with the all Iridium Satellite Series portable phones including the Iridium 9500, 9505, 9505A and 9555. The fixed mast antenna extends the reception of the handheld phone and delivers exceptional reception performance for permanent in-building or marine applications when no ground plane is available.
