EcoFlow DELTA Pro Ultra Inverter + 1* Battery + Smart Home Panel 2
Product Description
This bundle carries the least stored energy of any DELTA Pro Ultra bundle here — one inverter, one 6kWh battery — but adds the one thing the bigger battery bundles don't have: a Smart Home Panel 2. That's the hub that switches selected circuits over automatically the moment power drops, rather than leaving you to plug things in by hand. If circuit-level, automatic backup is the goal, the panel is the reason to buy this over a larger battery-only bundle.

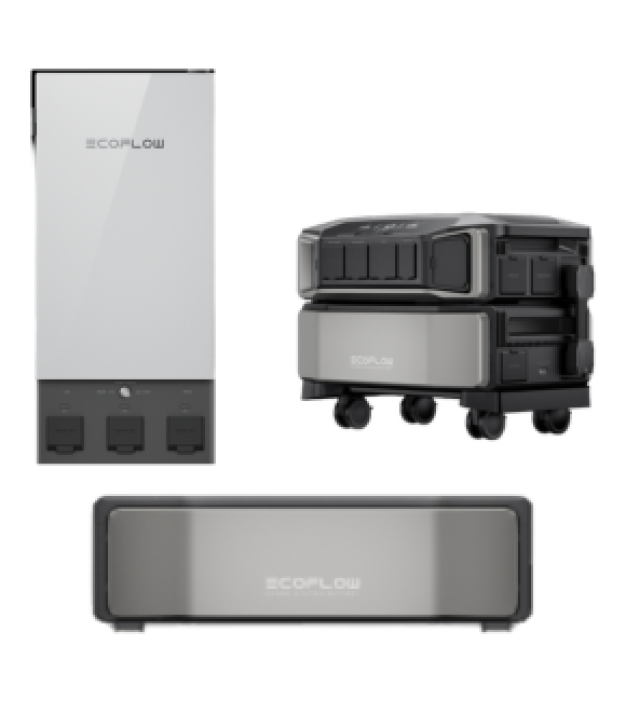

What's in the box
- EcoFlow DELTA Pro Ultra Inverter ×1
- EcoFlow DELTA Pro Ultra Battery ×1
- EcoFlow Smart Home Panel 2 ×1
Not sure what else you need? Call the Satmodo team on (619) 238-0205 and we will check it against your setup.
Specifications
| Total stored energy | 6 kWh (1 battery) |
|---|---|
| AC output, continuous | 7.2 kW (single inverter) |
| AC output, peak | 10.8 kW (brief) |
| Solar input | 5.6 kW (single inverter) |
| PV input | Handles both high and low voltage solar panels |
| Home backup | Smart Home Panel 2 with automatic switchover for instant backup |
| Circuit control | Extends backup with an hourly weather assessment ahead of outages |
| Scheduling | Time Of Use scheduling around peak/off-peak rates and solar generation |
| Panel layout | Two modules — battery connection box and distribution panel — installed separately or together |
| Compatibility | Panel works with DELTA Pro Ultra, batteries, generators, and solar panels |
| Battery charging sources | Solar, grid, or EV charging piles |
| Battery weather rating | IP54 |
| Control | Intelligent energy management via the EcoFlow app |
| Maximum system scale | Expandable from 6 kWh up to 90 kWh |
Specifications as published by EcoFlow for this product.
Why the panel, not the batteries, is the point
On battery count alone, this is the smallest bundle in the line: one 6kWh battery is good for about 50 minutes at the inverter's full 7.2kW output. But this bundle isn't sold on runtime — it's sold on the Smart Home Panel 2, which is the hub of a whole-home backup setup. It gives automatic switchover the instant power fails, circuit control that runs an hourly weather assessment to prepare the system ahead of a forecast outage, and Time Of Use scheduling that shifts load around peak and off-peak utility rates or your own solar generation. None of the plain battery bundles include this panel or do any of this.
How it's installed, and what to expect
The panel splits into two modules — a battery connection box and a distribution panel — which can be installed together or separately, giving an installer flexibility in how it's wired into the home. It's compatible with DELTA Pro Ultra, additional batteries, generators, and solar panels, so the battery side can be expanded later without replacing the panel. If more runtime is the priority over automatic switchover, one of the larger battery-only bundles will get more hours for the same single inverter's 7.2kW output.
Common questions about this product
Automatic, circuit-level switchover the moment power fails, an hourly weather assessment that prepares the system ahead of forecast outages, and Time Of Use scheduling around peak/off-peak utility rates and your own solar generation. It's the difference between a backup system and a power bank you plug things into by hand.
The panel, not battery count, is the point of this bundle. One 6kWh battery is included to make it a complete system out of the box; more DELTA Pro Ultra batteries can be added afterward since both the inverter and batteries are stackable.
The Smart Home Panel 2 is what wires into your home's circuits, split into a battery connection box and a distribution panel that can be installed separately or together. That's an electrical installation job — call (619) 238-0205 to talk through what your install will involve.
About 50 minutes at the inverter's full 7.2kW output. At lighter loads across just the backed-up circuits, it will run considerably longer — and more batteries can be added later for more runtime.
The inverter outputs 7.2kW continuous (10.8kW briefly), the same as any single DELTA Pro Ultra bundle. The Smart Home Panel 2 manages which circuits draw on that power and switches them automatically — it doesn't raise the output ceiling itself.
Yes. The Smart Home Panel 2 is built to work with DELTA Pro Ultra, additional batteries, generators, and solar panels as part of one backup system.
