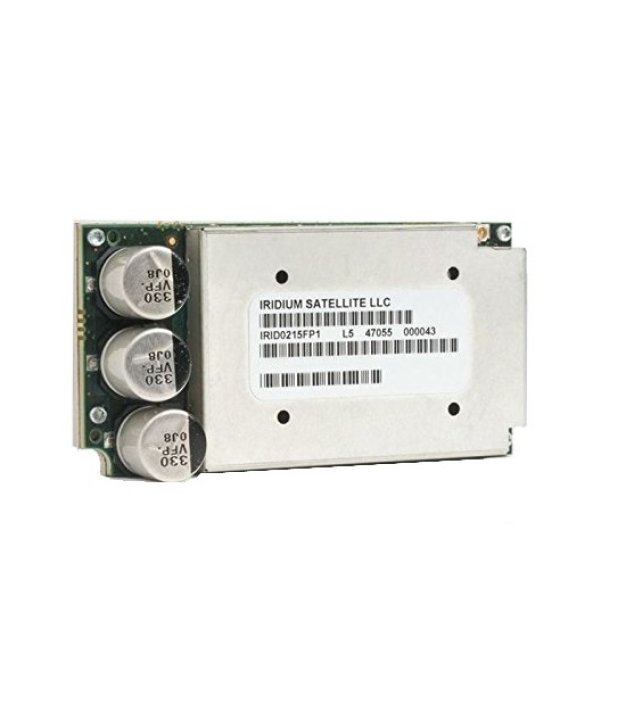

Core 9523 Satellite Transceiver Module
$949.00
In stock
SKU
CORE-9523-SAT-TRAN-MOD
Same day delivery
Hassle Free Returns
24/7 Support
(813) 922-8999
(813) 922-8999
9522B Satellite Transceiver
Previous
The Iridium Core 9523 brings simplified worldwide voice and data accessibility, in the smallest, lightest, and most technologically advanced satellite transceiver ever built. It’s an incredible 90% smaller than its predecessor and features standardized connectors so that it can easily integrate into new products developed by Iridium partners allowing penetration into under-served markets.
| SPECIFICATIONS | |
| Pole-to-pole global coverage | |
| Ultra compact form factor | |
| Single-board transceiver | |
| Standardized connectors | |
| Voice, Circuit Switched Data and RUDICS | |
| Short Burst Data (SBD) capable | |
| Direct PCB integration | |
| FCC, Industry Canada, and CE approval* | |
| * For applications using an antenna with a gain of up to 3dbi. | |
| Capabilities | |
| Iridium Voice, SMS, Circuit Switched Data and RUDICS | |
| Maximum mobile originated SBD message size 1960 | |
| Maximum mobile terminated SBD message size 1890 | |
| Mechanical | |
| Length 70.44 mm | |
| Width 36.04 mm | |
| Height 14.6 mm (reservoir capacitors) 8.9 mm (screen can) | |
| Weight 32g | |
| Environmental | |
| Operating Temp. -30ºC to + 70ºC | |
| Operating Humidity ≤ 75% RH | |
| Storage Temp. -40ºC to + 85ºC | |
| Storage Humidity ≤ 93 % RH | |
| RF Parameters | |
| Frequency Range 1616 MHz to 1626.5 MHz | |
| Duplexing Method TDD (Time Domain Duplex) | |
| Input/Output Impedance 50 Ω | |
| Multiplexing Method TDMA/FDMA | |
| DC Power Input | |
| VBAT Power Input Specifications | |
| Nominal Voltage +3.7 V | |
| Voltage Limits +3.2 V to +6 V | |
| Maximal Current 500 mA | |
| VBAT Typical Current at Nominal +3.7 V | |
| Standby Current 70 mA | |
| Peak Current during Call 300 mA | |
| Average Current during Call 110 mA | |
| VBOOST Power Input | |
| Nominal Voltage +27 V | |
| Absolute Maximal Voltage +35 V | |
| Maximal Recommended Voltage +32 V | |
| Minimal Voltage during Call Transmit Burst +10.5 V | |
| Maximal Current 1 A | |
| VBOOST Power Consumption | |
| Typical Average Power during Call 2.3 W | |
| Maximal Average Power during Call 3.1 W |
