The Iridium 9602N SBD transceiver module combines the global coverage of the Iridium satellite constellation with the low latency of the Iridium Short Burst Data Service (SBD) to provide highly reliable satellite communications globally.
Special offer

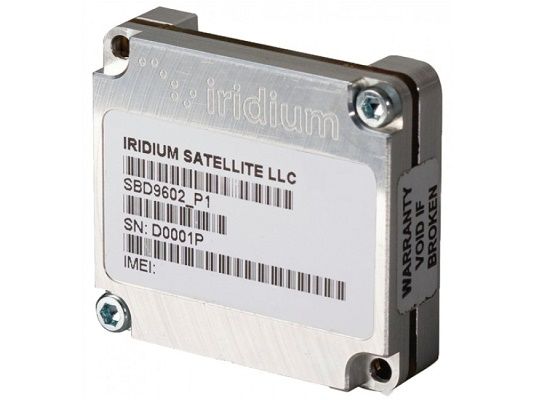

9602 SBD Transceiver
In Stock
SKU:
9602-SBD-TRAN
$249.00
was
Have questions?
Expert help just one click away
Contact Us
Product Description
The Iridium 9602 SBD Transceiver is designed to be integrated into a larger hardware or software application or solution. The Iridium 9602 is perfect for Machine-to-Machine (M2M) solutions, like maritime vessel tracking, monitoring equipment, or an automated vehicle locating service.
Small, But Mighty
Designed for integration into complete wireless solutions, the Iridium 9602 provides the critical data communications necessary for truly global solutions. Iridium partners can create high-value data solutions combining the Iridium 9602 module and Iridium Short Burst Data service.
Small. Light. Low Power.
Its small size, low cost, and ease of integration make Iridium 9602 ideal for your IoT connectivity needs.
Single Board Module-Integrate additional functions such as GPS, microprocessor-based logic control, digital and analog I/O, power supply, and antenna
Small Form Factor-Small, lightweight, low-power for easy integration into IoT solutions of any size
Location-Based Services-GPS module antenna feed for shared antenna applications
XXMC Connector-For small Omni-directional L-band antennas
No SIM Card
RoHS Compliant
The Iridium 9602 single-board transceiver was developed to exclusively support Iridium’s Short Burst Data service, providing critical data communications globally.
Designed to be integrated into a wireless data application with other host system hardware and software, the Iridium 9602 is ideal for M2M solutions, including tracking of maritime vessels, equipment monitoring, and automatic vehicle location.
| SPECIFICATIONS | |
| Single board transceiver | |
| Small form factor | |
| No SIM card | |
| Designed to be incorporated into an OEM solution | |
| RoHS compliant | |
| Mechanical Dimensions | |
| Length 41.0 mm | |
| Width 45.0 mm | |
| Depth 13.0 mm | |
| Weight 30 g | |
| Environmental Specifications | |
| Operating Temperature Range -40ºC to + 85ºC | |
| Operating Humidity Range 75% RH | |
| Storage Temperature Range -40ºC to + 85ºC | |
| Storage Humidity Range 93% RH | |
| RF Parameters | |
| Frequency Range 1616 MHz to 1626.5 MHz | |
| Duplexing Method TDD (Time Domain Duplex) | |
| Input/Output Impedance 50 | |
| Multiplexing Method TDMA/FDMA | |
| DC Power Input | |
| Idle Current (average) 45mA | |
| Idle current (peak) 195mA | |
| Transmit Current (peak) 1.5A | |
| Transmit Current (average) 190mA | |
| Receive Current (peak) 195mA | |
| Receive Current (average) 45mA | |
| SBD message transfer – average current 190mA | |
| SBD message transfer – average power 1.0W |
Can I buy a satellite phone?
Yes you can buy satellite phones, we offer the best satellite communication options. Including Iridium, Globalstar, and Inmarsat. Satmodo offers satellite phones that work anywhere in the world.
Do I need to rent or purchase a satellite phone?
If you are needing a satellite phone more than 6 weeks out of a year we always suggest purchasing. This will save you money in the long run. If you are just doing a short camping, hiking and hunting, etc. We recommend renting the satellite phone.
Why do people need satellite phones?
If you are planning on going on a trip where cell service is not available or if you want to be prepared for the next natural disaster. Satellite phones work when nothing else does. If there is no power and no cell service your satellite phone will work. Making this the most reliable form of communication.
How quickly can I get a satellite phone?
Satmodo can get you a satellite phone or satellite internet SAME DAY! We do always recommend planning ahead of time to save money on shipping costs. However, we can get you your devices same day if need be.
Which satellite phone has the best coverage?
Satmodo only works with the best networks. Iridium, Globalstar, and Inmarsat all offer different coverage areas. The only network that has global coverage is the Iridium Network.
More Information
| Airtime Group | Iridium Short Burst Data Airtime 2 |
|---|---|
| SKU | 9602-SBD-TRAN |
| Use physical product data | No |
| Item Returns | This item can be returned |
