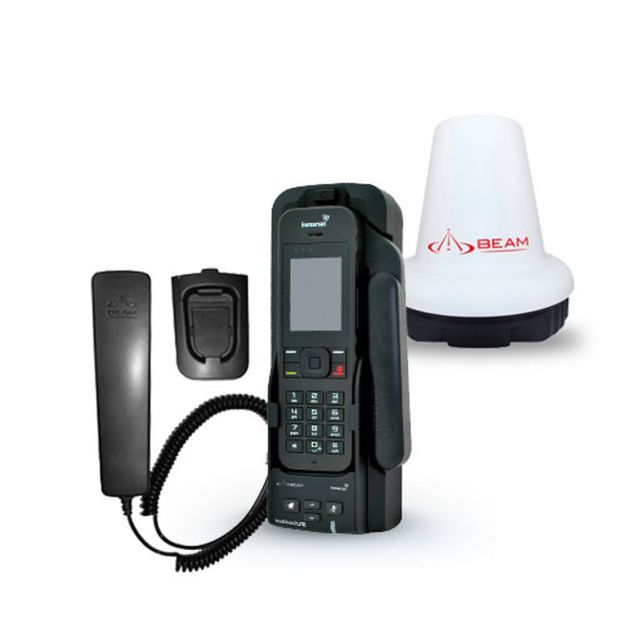

Beam IsatDock 2 Lite Bundle with ISD710 Active Antenna & ISD955 Privacy Handset For IsatPhone 2

We are offering the latest Beam IsatDock 2 Lite Package with ISD710 Active Antenna and ISD955 Privacy Handset as a perfect solution for the IsatPhone 2 of your Inmarsat. For this kit, you'll be able to use your satellite phone for maritime adventures or jobs. Get clear voice and instant access to data with the ISD700 active antenna and feel free to answer any personal call with the included Privacy handset.

The IsatDock LITE has been specifically built for the IsatPhone 2 from Inmarsat and enables a semi-permanent installation for a variety of land and sea applications where easy access to standard voice and data services is needed.

The IsatDock LITE allows the IsatPhone 2 to always be on and ready to accept incoming calls, which can be answered via a Bluetooth * adapter or the optional privacy handset.

The IsatPhone 2 handset, which is also key-lockable for extra protection, fits in the IsatDock LITE. Certain features include mobile charging, USB data port, docked Bluetooth cable and built-in ringer. The antenna and power are permanently attached to the dock so that the IsatDock LITE is still ready for use.

The IsatPhone 2 handset is easily inserted and removed by pressing a button which makes it quickly accessible from the dock when necessary.

IsatDock MARINE Active Antenna ISD710 is mainly designed for maritime applications. Designed to operate on the IsatDocks and Oceana terminals for Beam. With its solid bracket fixed to the antenna, the antenna connection is protected from the environment.

The IsatPhone 2 handset, fits securely in the dock, its features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the dock, ready for use.

Beam IsatDock2 LITE has an in-built ringer that allows you to toggle through the available ring tones

Beam IsatDock2 LITE supports optional Privacy Handset, ready to receive incoming calls. It features auto sensing answer and hang-up intelligence.

Key Benefits and Features

• Slimline compact installation
• Privacy Handset option (ISD955)
• Voice, SMS, and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack 110/240 input (optional)
• SMA Connectors – Inmarsat Antenna / GPS Antenna
• Full certified, FCC, Industry Canada, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2-year repair or replacement warranty
• 100% factory tested

https://www.satmodo.com/product/isatphone-2/

Power

Average Power Consumption Current @ 12V Watts
Power w/o IsatPhone 2 130mA 1.6W
Standby + Charging 360mA 4.3W
Transmit + Charging 875mA 10.5W
Sleep Mode 5mA 60mW
Peak Current 3.5A 42W

Connectors / Interfaces

Inmarsat Antenna TNC-Female
GPS Antenna SMA-Female
10-32 VDC 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port RJ9 connector
Configuration / Data USB Micro
LEDs/Buttons Status LED, Ringer, Mute, Up and Down

Environmental

Temperature Degrees °C Degrees °F
Operating Range -35°C to +85°C -31°F to +185°F
Storage -20°C to +70°C -4°F to +158°F
Battery Charging Temp
* It is ideal for the ambient temperature to be approximately 18 degrees below the 45°C upper limit for the handset to charge the battery whilst docked.
0°C to +45°C 32°F to +113°F
Humidity <- 75% RH

Physical

Dimensions mm inches
Dock 229 x 99 x 76 9.0 x 3.9 x 3.0
Outer Box 290 W x 170 D x 190 H 11.42 W x 6.69 D x 7.48 H
Weight kg lbs
Dock 0.56 1.23
Box 1.35 2.97

Kit Contents

IsatDock2 LITE
2 x IsatDock2 Adaptors
10-32 DC Power Cable
Universal Mounting Bracket (RAM)
User Manual
Quick Start Guide

Certifications

Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
EMC compliance

More Information
SKU BEAM-ISD710-ISD955
Use physical product data No
Item Returns This item can be returned
Beam IsatDock 2 Lite Bundle with ISD710 Active Antenna & ISD955 Privacy Handset For IsatPhone 2
Beam IsatDock 2 Lite Bundle with ISD710 Active Antenna & ISD955 Privacy Handset For IsatPhone 2
$1,829.00
