Product Description

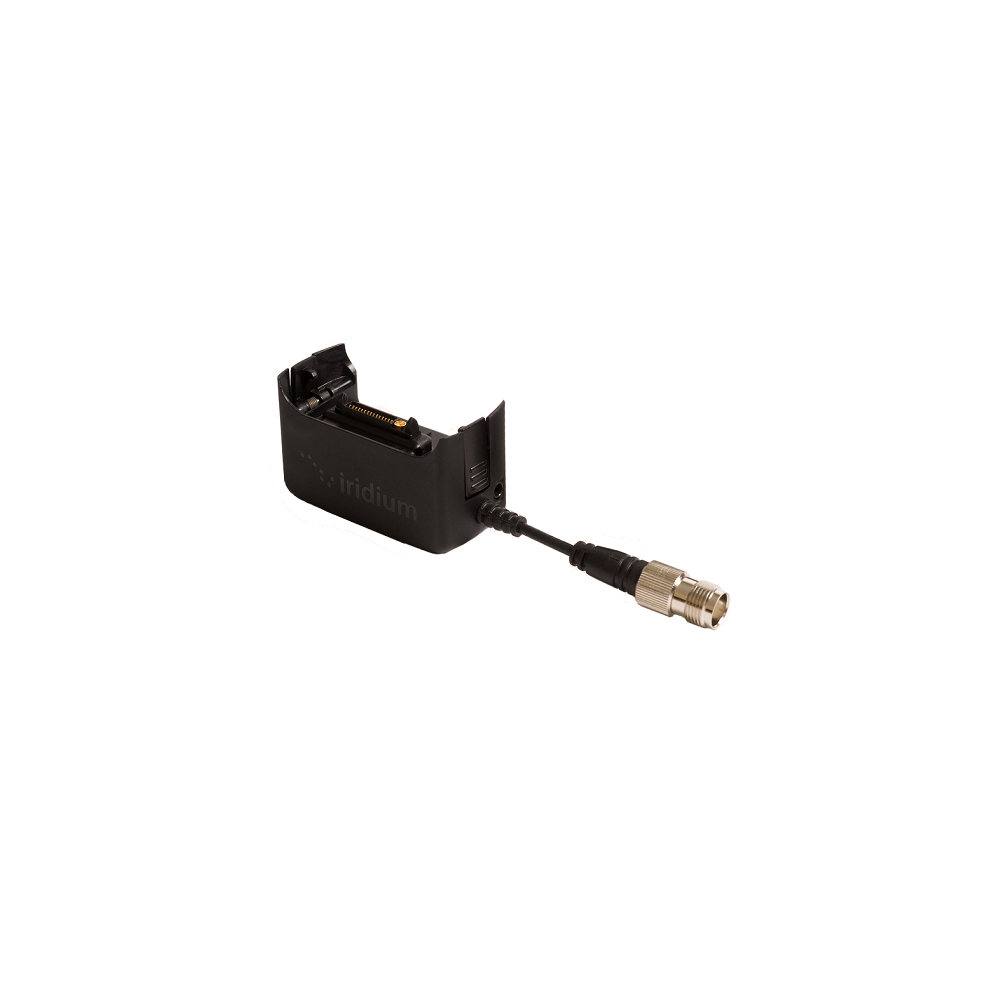

The Iridium Extreme 9575 Antenna Power USB Adapter H3AA1101 enables you to charge and power your Iridium 9575 satellite phone via a USB connection. Unless you have this adapter, you won’t be able to connect your satellite phone to an external antenna and charge your phone, which is essential for its operation. Having an extra Iridium Extreme 9575 Antenna Power USB Adapter in your bag in case of an emergency is always a good idea. Even if you have a power source nearby, you won’t be able to charge your Iridium Extreme Satellite Phone unless you have this USB Antenna Power adapter or the USB Power Adapter for the 9575.
You can use this adapter to connect external antennas, AC/DC chargers, and solar panel USB chargers to your Iridium Extreme satellite phone. The Iridium Extreme standard package includes this adapter in the box.
When using your Iridium Extreme 9575 satellite phone to “Register” or “Place A Call,” do not utilize the H3AA1501 adapter. Except if you have a separate external antenna connected. In the event that you do not have an external antenna attached to your satellite phone, this adapter will not allow you to register your phone or make calls.
The Iridium Extreme 9575 comes with two adapters, the charging adapter, and the antenna adapter. This adapter allows your Iridium 9575 Extreme to connect to the charger, to an external antenna, or to a USB data cable at the same time. Having the antenna connected will allow you to use the Iridium 9575 Extreme while it is in a vehicle or building with the right cable length
The Iridium Extreme 9575 Antenna Power USB Adapter H3AA1501 is a must-have for anyone using an Iridium Extreme 9575 satellite phone. This adapter enables you to charge and power your phone via a USB connection, so you’ll never have to worry about losing power while on the go. With this adapter, you’ll be able to connect your satellite phone to an external antenna and keep it charged up no matter where you are. Don’t go on your next adventure without this essential piece of gear!
| Part Number | IR-00-BPKT0801 |
| Power Input |
|
| Data Input | Mini USB Cable |
| Antenna Input | Supports any TNC-M Terminated Iridium Antenna Cable |
| Weight | 4oz (113.4g) |
| Dimensions | 3.5 x 2.5 x 1.5 in |
| Compatible Devices |
|
| Compatible Antennas |
|
| Brand | Iridium |
SPECIFICATIONS Supports the Extreme 9575 only Power Input: 10-32V DC via compatible ACTC0701 Wall AC adapter or AUT0701 DC charger Data Input: Mini USB Cable Battery charge time to 90% capacity is 3 hours when charged in the Iridium satellite phone handset at 25°C (77°F). For optimum performance, only charge your battery between 0°C (32°F) and 40°C (104°F). Part # H3APU1101
The Extreme 9575 Antenna Adapter allows connection to:
- DC Auto charger to charge the 9575 satellite phone.
- Wall AC charger to charge the 9575 satellite phone.
- USB-mini cable for data access for a computer connection.
- Iridium USB Charging Cable from Apollo
- All External Antenna cables with TNC-Male connection.
Part Number: IR-00-BPKT0801
