Beam RST936 Iridium 30-meter (98 feet) antenna cable provides the ability to run long-distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors.
Iridium 30M Antenna Cable Kit
$495.00
In stock
SKU
iridium-30-m-antenna-cable-kit

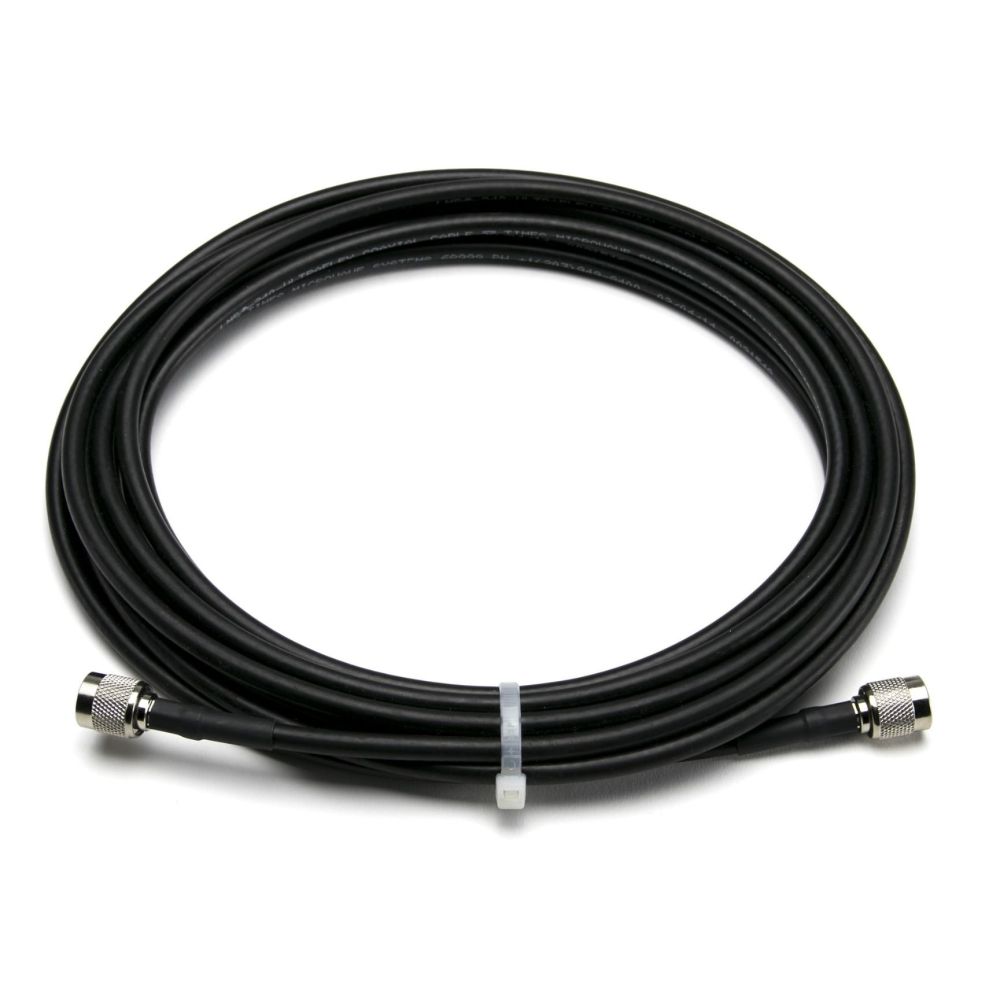

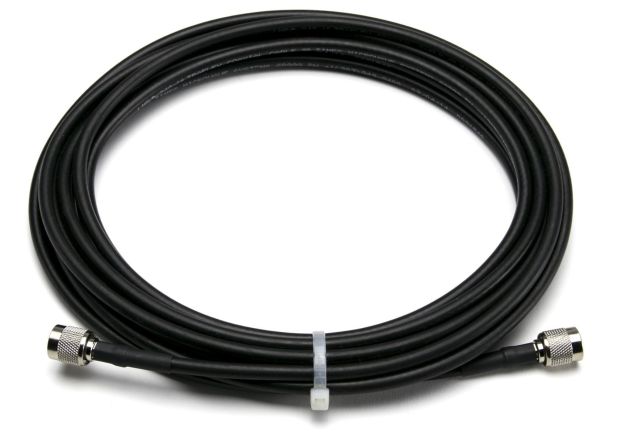

Iridium 30 meters (98 feet) antenna cable provides the ability to run long-distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors. For use with all Iridium satellite docking stations and fixed mast antennas used with Beam and ASE docking station
Includes:
98.4′ (30 m) LCF78-50J main cable
Two 24-inch TNC to TNC adapters
Same day delivery
Hassle Free Returns
24/7 Support
(813) 922-8999
(813) 922-8999
Aquapac Universal Pouch
Previous
Iridium Passive Antenna Cable Kit - 30m/98ft
Iridium 30m antenna cable provides the ability to run long-distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors. This is great to be used directly with the satellite phone or used with one of the Beam docking stations or the ASE docking station. This would work for Iridium 9555, Iridium 9575, and the Iridium GO
Installation and Weather Proofing: During installation, be very careful to avoid sharp bends in the coaxial antenna cable which increases signal loss. It is important to weatherproof the exposed connectors between the Mast Antenna and the antenna cable. This prevents moisture and saltwater intrusion into the connection which can cause corrosion. For most applications, we recommend Coax-Seal Tape (hand-moldable plastic) as a reliable weatherproofing product.
| General Specifications | |
| Total Kit Weight | 5.39Kg / 11.88Ibs |
| Main Cable | |
| Length | 29m / 95.14ft |
| External Diameter | 2.78 cm / 1.2" |
| Bend Radius | 12 cm / 4.72" |
| Bend Radius - Repeated | 25 cm / 9.84" |
| Operating Temperature | -50°C to +85°C (-58°F to +185°F) |
| Fly Lead (Passive) | |
| Length | 0.5m / 1.64ft |
| External Diameter | 0.61 cm / 0.24" |
| Bend Radius | 1.91 cm / 0.75" |
| Bend Radius - Repeated | 6.35 cm / 2.5" |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
What is Included in Iridium 30M Antenna Cable Kit?
- 2 x 0.5m Ultra-flex (LMR240)
- 1 x 29m (LCF7850J).
Key Features of Iridium 30M Antenna Cable Kit:
- Provides the ability to run long-distance installations for larger marine vessels and fixed installations
- Pre-terminated with TNC male connectors.
