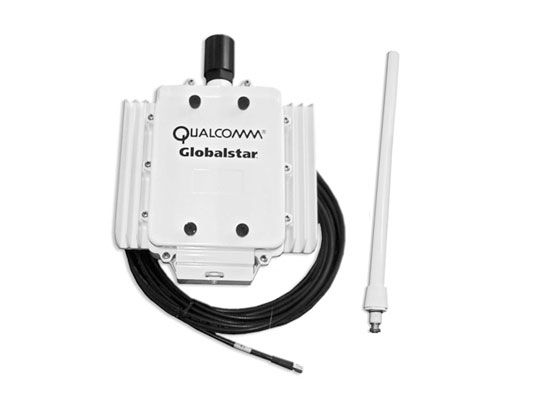

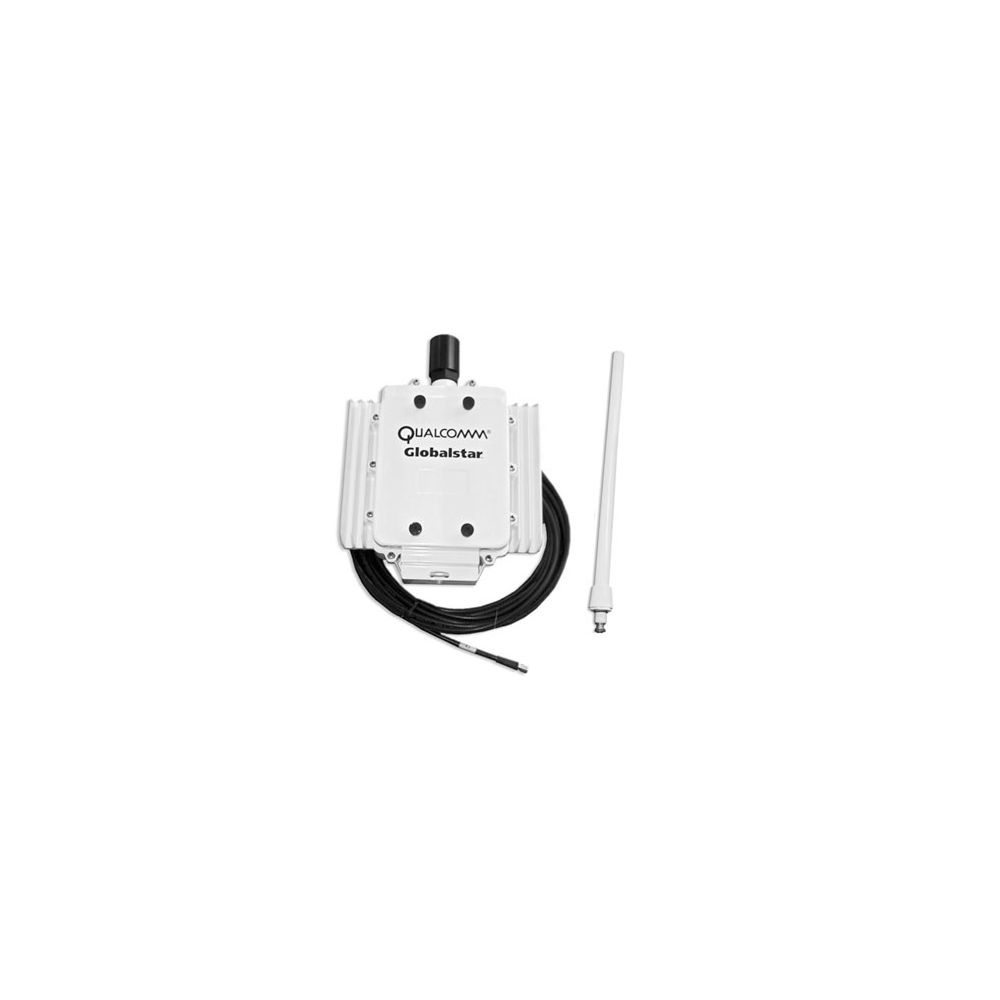

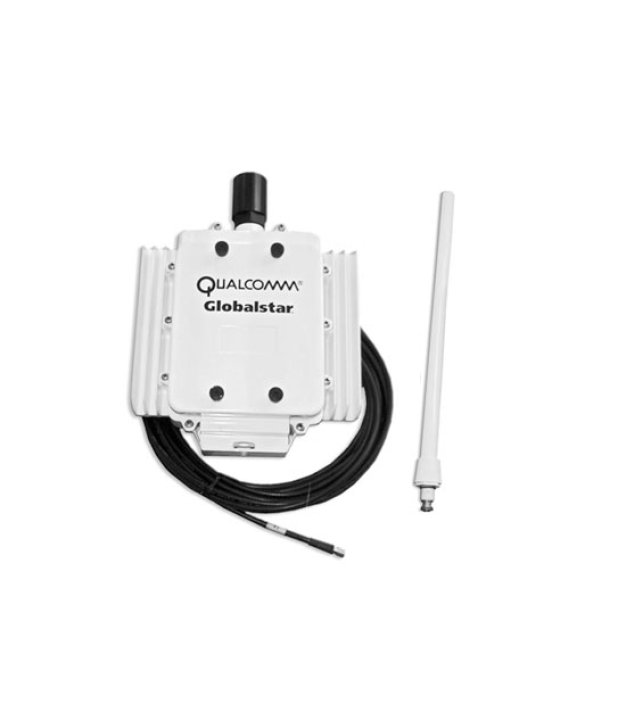

GSP-2900 Fixed Phone System

The GSP-2900 provides convenient fixed access to satellite voice and data services, including Internet, e-mail and voicemail. As many as five RJ-11 jacks can be connected to the GSP-2900 to provide dial-tone to any standard or cordless phone. Installation options are virtually endless -- GSP-2900 phones have been installed in boats, ships, cottages, skyscrapers, oil rigs and service vans. You can also access Remote Terminated Data -- an easy way to communicate with monitoring devices to track equipment in remote locations. Three cable length options, suitable for most applications, are available: 20', 30', and 55'. Includes marine enclosure for the antenna.

GSP-2900

Fixed Phone System
Visit Globalstar.com for service plan and coverage details.
GSP-2900 INCLUDES
• Fixed Phone Unit
• Mini-Stick antenna
• Junction Box
• +12V AC/DC Power Supply
• Backup Battery
• Mounting Kit
• 50’ power/phone cable
FIXED PHONE UNIT
DIMENSIONS 9.7 IN (H) x 8.5 IN (W) x 3.3 IN (D)
25 CM (H) x 21.6 CM (W) x 8.4 CM (D)
WEIGHT 6.7 lbs (3.04 kg)
OPERATIONAL TEMPERATURE -22°F to + 140°F (-30°C to +60°C)
STORAGE TEMPERATURE -40°F to + 185°F (-40°C to +85°C)
TECHNICAL SPECIFICATIONS
POWER – Universal AC/DC power supply, with
battery backup
– Power Consumption 36 watts maximum
at 12 VDC nominal input voltage
– 12-watt typical operation
RF POWER OUTPUT 2 watt maximum (+33 dBm)
JUNCTION BOX
DIMENSIONS 6.0 IN (H) x 3.2 IN (W) x 2.1 IN (D)
15.2 CM (H) x 8.2 CM (W) x 5.3 CM (D)
WEIGHT 1.0 lbs (0.45 kg)
OPERATIONAL TEMPERATURE -22°F to + 140°F (-30°C to +60°C)
STORAGE TEMPERATURE -40°F to + 185°F (-40°C to +85°C)
Some conditions apply. Rates for minutes are based on individual price plans. Coverage may vary. Specifications are subject to change without notice.
Globalstar reserves the right to make changes to pricing, coverage, and price plans at any time without notice. Ask your local Globalstar Authorized
Dealer for complete pricing and coverage information or see complete details at www.globalstar.com. Please see complete details of Globalstar
Service in the Terms and Conditions on our website, www.globalstar.com. © 2016 All rights reserved.
• Globalstar 9600 Data Satellite Hotspot ($149)
• GDK-G9600-ADPT – Serial to USB Cable ($29.95)
• DK-2900 Data Cable Kit ($149.95)

Multiple configurations are available, including marine use.
Please consult your Globalstar representative.

DATA (OPTIONAL ACCESSORIES)
(connects to standard analog phone – not included)
The GSP-2900 is a versatile fixed satellite phone system providing convenient access to satellite voice and data services, including the Internet, email, and voicemail. The system allows personnel to keep in contact with co-workers, manage projects and maintain efficiency from remote worksites on land and water. For disaster management and emergency preparedness, the GSP-2900 can be used as an affordable and redundant communications system, providing temporary backup communications for any fixed-site location

FLEXIBLE CONFIGURATION

Can be installed on boats, skyscrapers, service vans, and more
• Easily connect the GSP-2900 power supply to a 12V generator or solar power
a system where standard 110V power is not available
• Battery backup for redundant power
• Choose from 3 antenna cable length options 20’, 30’ and 55’
• Connect up to 5 analog telephones up to 800’ away
• Interface with trunk line or phone switch loop, both key systems and PBXs
• Standard RJ11 analog phone jack and dial tone
