Iridium 9603 SBD Developer Kit
In Stock
SKU:
9603-SBD-DEV-KIT
$2,199.00
was
Have questions?
Expert help just one click away
Contact Us
Product Description

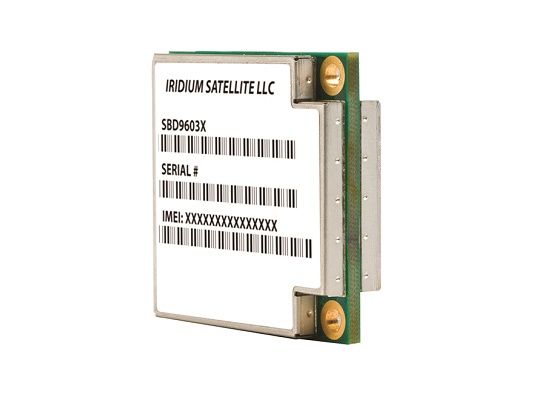

The Iridium 9603 SBD Transceiver provides extremely reliable satellite communications, from pole to pole, by combining the worldwide coverage of the Iridium satellite network with the low latency of the Iridium SBD (Short Burst Data) Service. The 9603 is perfect for applications with tight space constraints, like monitoring, tracking, and alarm systems, and it’s very affordable. The Iridium 9603 transceiver broadens the worldwide Iridium user base by delivering two-way communications on an impressive scale.
The Iridium 9603 SBD Transceiver is a developer kit with a test interface board and an Iridium 9603N SBD transceiver for equipment developers. More information on the Iridium 9603N is provided in the Iridium 9603 Developer’s Guide.
A revolution in scale, the compact Iridium 9603 SBD Transceiver Developer Kit is the world’s smallest commercially available two-way satellite data transceiver. It is designed for applications where space is at a premium and connectivity is critical. Now users have the ability to order the Iridium developer kit and begin integrating this amazing module into their field applications.
| IN THE BOX | |
| Iridium 9603 SBD Transceiver | |
| Test Interface Board | |
| AC/DC Power Supply | |
| Cable | |
| U.FL to SMA Adapter | |
| CD-ROM Documentation | |
| SPECIFICATIONS | |
| Mechanical | |
| Length: 31.5 mm | |
| Width: 29.6 mm | |
| Depth: 8.1 mm | |
| Weight: 11.4 g | |
| Environmental | |
| Operating temperature range: -40ºC to +85ºC | |
| Operating humidity range: _ 75% RH | |
| Storage temperature range: -40ºC to +85ºC | |
| Storage humidity range: _ 93 % RH | |
| RF Interface | |
| Frequency range: 1616 to 1626.5 MHz | |
| Duplexing method: TDD (Time Domain Duplex) | |
| Input/output impedance: 50_ | |
| Multiplexing method: TDMA/FDMA | |
| Power | |
| Supply input voltage range: 5.0V +/- .5V DC | |
| Supply input voltage ripple: <40mV pp | |
| Idle Current (peak): 156mA | |
| Idle Current (average): 34mA | |
| Transmit Current (peak): 1.3 A | |
| Transmit Current (average): 145mA | |
| Receive Current (peak): 156mA | |
| Receive Current (average): 39mA | |
| SBD message transfer - average current: 158mA | |
| SBD message transfer - average power: <= 0.8 W |
