Product Description

Pelican 1200 Protector Case

The Pelican 1200 case is the minor Pelican case offered at Satmodo. With its high-density protective foam, your most minor satellite valuables will be protected from whatever may come their way.

Here are the top features of the Pelican 1200 Protector Case:

Tongue and groove latches and polymer o-ring form a watertight seal
Watertight to a depth of 1 meter
Easy-Open Latches
“Pick n Pluck” foam allows users to customize for an exact fit
Automatic Pressure Equalization Valve allows built-up pressure to be removed
Durable Stainless-Steel hardware
Handle for easy carrying
Versatile use
Made in the USA

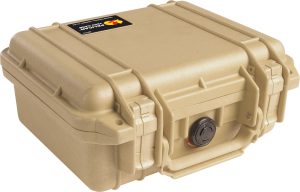

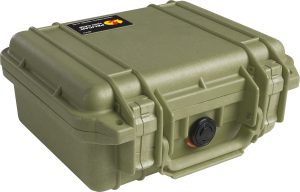

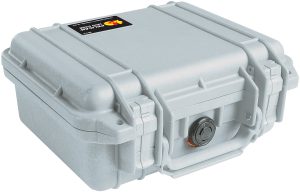

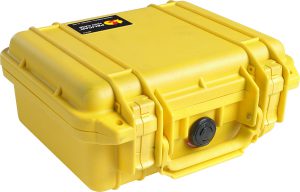

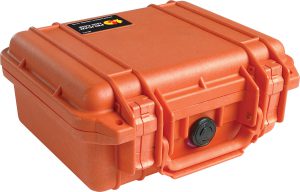

Choose from 6 color options
Crushproof and dustproof
Open cell core with solid wall design – strong, lightweight
Easy available Double Throw latches
O-ring seal

Interior (L×W×D)9.25 x 7.12 x 4.12 in

(23.5 x 18.1 x 10.5 cm)

Exterior (L×W×D)10.62 x 9.68 x 4.87 in

(27 x 24.6 x 12.4 cm)

Lid Depth1.18″ (3 cm)

Bottom Depth2.93″ (7.4 cm)

Total Depth4.11″ (10.4 cm)

Int Volume0.16 ft³ (0.005 m³)

Weight With Foam2.87 lbs (1.3 kg)

Weight Empty2.65 lbs (1.2 kg)

Buoyancy12.02 lbs (5.5 kg)

Body MaterialPolypropylene

Latch MaterialABS

O-Ring MaterialPolymer

Pins MaterialStainless Steel

Foam Material1.3 lb Polyurethane

Purge Body MaterialABS

Purge Vent Material3 Micron Hydrophobic Non-Woven

Foam Layer 1 (Lid)1.38″ (3.5 cm) – Convolute

Foam Layer 2 (Base)0.56″ (1.4 cm) – Pad

Foam Layer 3 (Base)2.19″ (5.6 cm) – Pick N Pluck

Minimum Temperature-40° F (-40 ° C)

Maximum Temperature210° F (99 ° C)

Q1-Pelican 1200 case dimensions
A1-Interior (L×W×D)9.25 x 7.12 x 4.12 in
(23.5 x 18.1 x 10.5 cm)Exterior (L×W×D)10.62 x 9.68 x 4.87 in
(27 x 24.6 x 12.4 cm)
Q2-Pelican 1200 case replacement foam ?
A2-Yes Pelican 1200 case foam can be replaced it will cost around $20 to 25$
