Hughes 9502 BGAN M2M Integrated Antenna Terminal

The Hughes 9502 BGAN M2M Internal Antenna Terminal is designed to work over the Inmarsat Broadband Global Area Network (BGAN) for IP SCADA and machine-to-machine (M2M) applications making it a great fit for enabling environmental, pipeline, or compressor monitoring, SmartGrid, well site automation, or video surveillance.

The 9502 M2M terminal delivers affordable, global, end-to-end IP data connectivity, even to power-challenged regions that rely solely upon solar-battery arrays with sensitive power budgets.  In fact, one of the most impressive features of the 9502 it’s exceptionally low power consumption (1W idle).

The terminal comes with 32 feet of RF cabling, allowing the user to position the antenna away from the transceiver, which could remain in a secure location to better protect your property from unauthorized use or theft.

The Hughes 9502 IP satellite terminal provides reliable connectivity over the Inmarsat Broadband Global Area Network (BGAN) for IP SCADA and machine-to-machine (M2M) applications. The Hughes terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry sectors such as environmental monitoring, SmartGrid, pipeline monitoring, compressor monitoring, well site automation, video surveillance, and out-of-band management to primary site communications.

The exceptional low power consumption (1W idle) of the Hughes 9502 makes it possible to provide end-to-end IP connectivity to sites that are off the grid. This breakthrough provides end-to-end IP connectivity to power-challenged locations that rely upon solar- battery arrays involving sensitive power budgets.

The Hughes 9502 includes 10 meters of RF cabling, granting the user freedom to position the antenna remotely and away from the transceiver in complex installations while securing the SIM card inside a premise or enclosure to better protect against unauthorized use, theft, and vandalism.

The Hughes 9502 includes 10 meters of RF cabling, granting the user freedom to position the antenna remotely and away from the transceiver in complex installations while securing the SIM card inside a premise or enclosure to better protect against unauthorized use, theft, and vandalism.

Features

• Utilizes BGAN or M2M SIM cards
• "Always-on" connectivity means no manual intervention is needed to recover from an outage
• Auto-on/auto-context activation automatically restores power and PDP connection following loss of power or IP connection
• Remote control with SMS—remote control of the terminal, including configuration, debugging, and access to Web interface
• Ultra-low power consumption
  • -Transmit: < 20W
  • -Narrow beam w/o transmit: 3W
  • -Idle (regional beam): 1W
  • -Off (wake on packet): < 10mW (@ 12Vdc)
  • -Off (wake on packet): < 30mW (@ 24Vdc)
  • -Off (GPIO control): 0W
• Relay mode passes WAN IP address to the connected RTU
• Supports Port Forwarding
• Security enhancements with extended layers of embedded security options
• Basic installation; no PC required
• Hardened all-in-one piece designed for complete outdoor installation
• Built-in GPS receiver

 Interfaces

• Ethernet connection (RJ45)
• USB–Type B for connection to configuration PC
• RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)

 Package Contents

• Hughes 9502 BGAN M2M Terminal
• Locking bar for padlock
• Mounting screws & washers

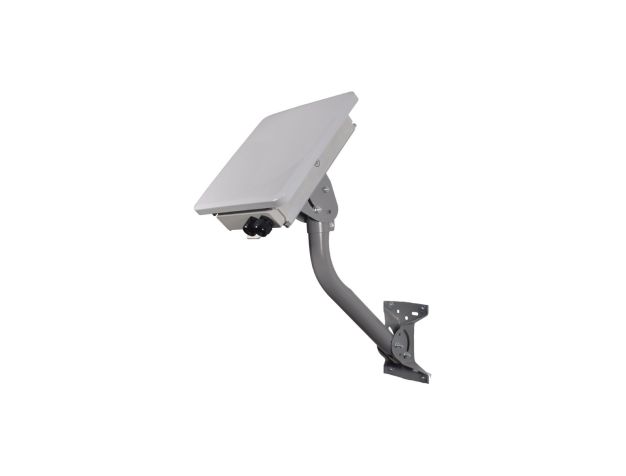

The world's most advanced, all-IP, BGAN machine-to-machine satellite terminal with integrated antenna and highest IP-66 ingress protection industry rating for outdoor installation.

Introduced as an alternative to the external antenna version of the 9502, this product integrates the 9502 modems with a compact antenna to create a single-piece, integrated, rugged terminal to withstand the most extreme weather conditions. Providing reliable IP connectivity over the Inmarsat Broadband Global Area Network (BGAN), it includes backup and out-of-band management to primary site communications—ideal for SCADA and unattended sites equipped for machine-to-machine (M2M) applications such as environmental monitoring, SmartGrid, pipeline monitoring/control, compressor monitoring/control, well site automation and surveillance.

The exceptional low power consumption (<1 W idle) of the Hughes 9502 makes it possible to provide end-to-end IP connectivity to sites that are off the grid. This breakthrough provides end-to-end IP connectivity to power-challenged locations that rely upon solar battery arrays involving sensitive power budgets.

Future firmware releases would be uncommon, meanwhile, any such modem update will qualify for no charge over-the-air (OTA) upgrades saving customers time and money.
