EXPLORER 727
In Stock
SKU:
EXP-727
$14,499.00
was
Have questions?
Expert help just one click away
Contact Us
Product Description

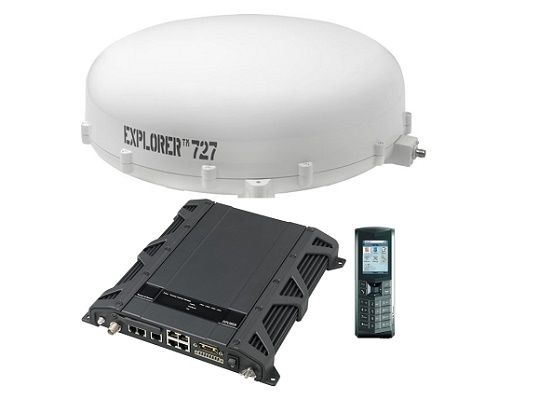

The EXPLORER 727 BGAN terminal is built for high-speed communications on-the-move! It is composed of three integrated components required to make it work: the transceiver, an IP voice handset, and an antenna that can be mounted to your vehicle’s roof. You just place the antenna on the roof, connect it to your computer and the BGAN 727 EXPLORER terminal (transceiver), and power up the voice handset to turn your vehicle into a mobile communications hub.
The robust and durable auto-tracking antenna follows satellite positions which enables high-speed connectivity, up to 432 kbps data and phone calls, at speeds over 125 mph! Utilize the highest streaming rates available on BGAN with BGAN X-Stream while the terminal is not in motion (on-the-pause).
SPECIFICATIONS
Dimensions
Transceiver H/W/D: Â Â Â Â Â Â 1.67 / 9.72 / 10.63 inches
Antenna H / W:                6.3 / Ø18.76 inches
Weight
Antenna: 13.2 lbs
Transceiver: 5.5 lbs
Global Services
- Voice: 4 kbps AMBE+2
- Premium voice: 3.1 kHz audio, 64 kbps (@ elevation > 20° on-the-move / > 5° on-the-pause)
- Standard IP: Up to 492 kbps
- Streaming IP: 32, 64, 128, 256 kbps (256 kbps @ elevation > 45° on-the-move / > 5° on-the-pause)
- BGAN X-Stream: Min. 384 kbps on-the-pause
- ISDN: UDI 64 kbps / RDI 56 kbps (@ elevation > 20° on-the-move / > 5° on-the-pause)
- SMS: 160 characters
Guaranteed service: Works above 5° elevation
Inmarsat frequencies:                  1525.0 – 1559.0 MHz (Rx)
1626.5 – 1660.5 MHz (Tx)
Interfaces
- 2 x Analogue RJ-11 phone/fax interfaces
- 4 x LAN interfaces
- Connector type: RJ-45; Power over Ethernet (PoE)
- Data rate: 10/100 Mbps
- cable length: 100m / 328ft (Cat5 UTP)
- Standard: ISO/IEC 8877:1992 and IEEE 802.3 (1998 edition)
- 1 x ISDN interface
- Connector type: RJ-45
- I/O connector: 5 pin general purpose I/O
- Antenna Connector
- Transceiver, TNC-Socket, Female
- Antenna, TNC-Socket, Female
- BGAN SIM-Card slot
POWER
DC input range: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 10.5-32VDC
Power (max)@10.5-32V.: 150W (incl. antenna & PoE output)
IN THE BOX
- EXPLORER 727 transceiver
- EXPLORER 727 tracking antenna
- Antenna cable, coax w/ TNC plug (2.7m & 8m / 8.8ft & 26ft)
- Standard ethernet cable (5m / 16.4ft)
- 24V DC input cable (6m / 19.7ft) with 5 additional wires for I/O connectors
- Thrane IP handset w/ cradle & coiled cable
- Antenna mounting kit (fixed / rail)
- Getting started kit: Quick start guide, CD with manuals
