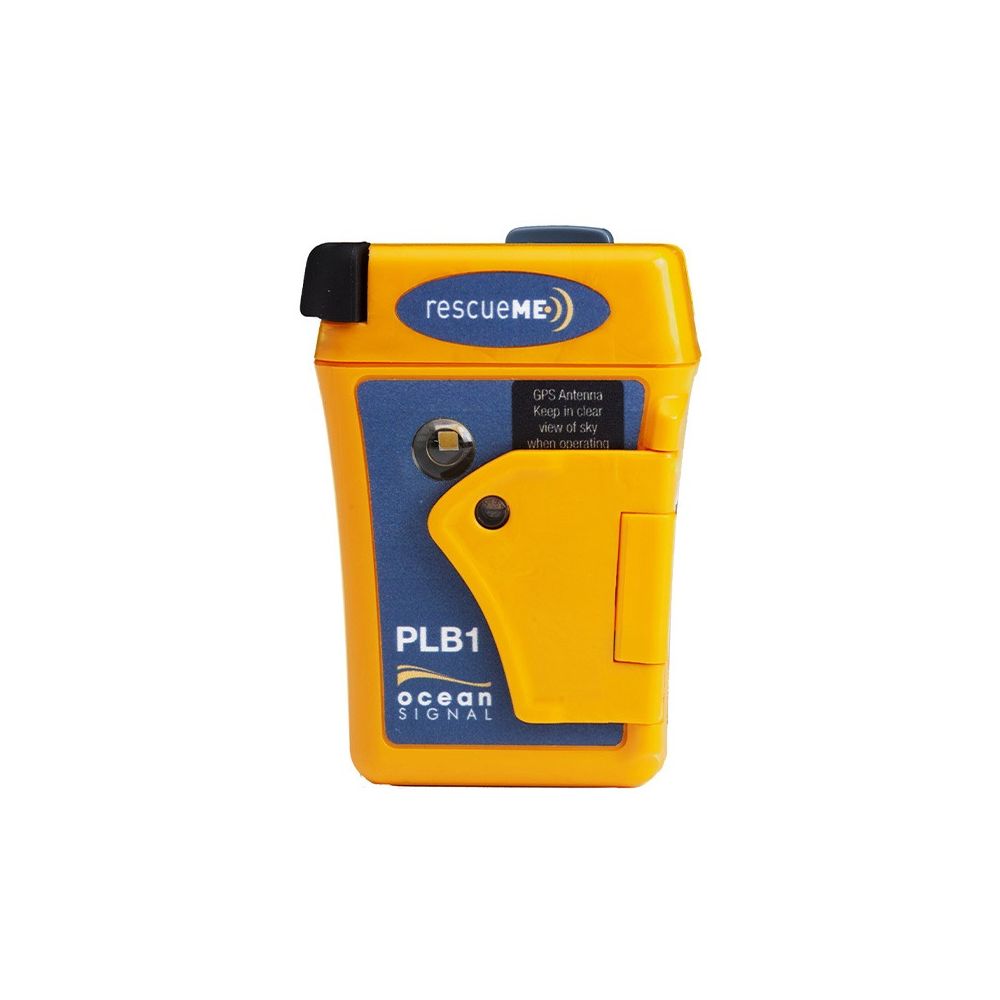

RESCUEME PLB1

Product Description

The rescueME PLB1 works with the only officially recognized worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service. When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to you are promptly notified of your emergency and regularly advised of your current location to assist with prompt rescue.

There is an option to purchase the rescueME PLB1 with a flotation pouch included (730S-04077). Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self-locking knots.

30% smaller (typ) by volume
Easily fits in a lifejacket
Retractable Antenna
7 Year Battery Life
24+ hour operational life
High brightness strobe light >1candela
66 channel GPS receiver
Unique mounting clip
Operates on the global Cospas Sarsat rescue system
Free to use, no subscription charges

406MHz Satellite Transmitter

Frequency

406.040MHz

Tolerance

±1kHz

Output Power

5watts (nominal)

Stability

2ppb/100ms

Modulation

Phase ±1.1radians (peak)

Emission Designator

16K0G1D

Encoding

Bi-phase L

Data Rate

400bps

Duration

520ms

121.5MHz Homing Beacon

Frequency

121.5MHz

Stability

±50ppm

Output Power

25-100mW PERP

Modulation

Swept Tone AM

Emission Designator

3K20A3X

Modulation Depth

85-100%

Sweep Range

400Hz – 1300Hz

Low Duty Cycle Strobe Light

Light Type

High intensity LED

Output Power

~1candela

GPS Receiver
Sensitivity Cold Start
-148dBm

Sensitivity Re-acquisition

-163dBm

Satellites channels tracked

60

GPS Antenna

Microstrip patch

Battery

Type

Lithium Primary

Chemistry

Manganese Dioxide (LiMnO2)

Operational Life

>24hours @ -20°C

Environmental

Operating Temperature Range

-20°C to +55°C

Storage Temperature Range

-30°C to +70°C

Waterproof

15metres at +20°C

Drop

1metre @ -30°C

Dimensions

Height

77mm (3.0″)

Width

51mm (2.1″)

Depth

32.5mm (1.3″)

Weight

116g

Standards

Cospas-Sarsat

T.001 / T.007

ETSI

EN302 152

RTCM

SC11020

FCC

CFR47 part 95K

What is the location accuracy of the rescueME PLB1?

The Cospas Sarsat system uses two methods of locating a beacon. The satellite system is designed to locate your beacon using the transmission alone. The accuracy of this fix is approximately a 5 nautical mile radius but is typically much better. The rescueME PLB1 has a built-in GPS receiver that is used to encode the position in the transmission. When the GPS has a reliable fix, usually within a few minutes, the accuracy is typically within 100 meters of your actual position can be achieved. Is the battery replaceable on the PLB1? Yes, the battery will be replaceable after the expiry period or after the unit has been activated. The battery is not user-replaceable and must be sent to an authorized service dealer for replacement. Please contact the distributor in your country for further information.

If I register my PLB in one country, can I use it in another country?

Yes, you can use your PLB anywhere in the World. When you register your PLB, make sure you give emergency contacts who will know where you are if you need to activate the PLB in an emergency. This aids the rescue authorities to make sure it is a real alert and will speed up your rescue.

When should I replace my PLB1 battery?

Under normal circumstances, the battery in the PLB1 should be replaced before the expiry date marked on the unit. If the unit has been activated in an emergency or if the test indicator LED is flashing amber (orange) the battery must be replaced before it is used again to ensure the full 24 hours of operation in an emergency. The typical lifetime of the PLB1 is greater than 24 hours, but this is under defined conditions of storage and test usage. Do not assume that just because the activation was only for a short length of time the battery will not need exchanging. Details of battery exchange in your region can be found by enquiring with your local distributor. Please see www.oceansignal.com/stockists for information on our distributors.

Carrying a PLB on aircraft as luggage?

The Ocean Signal rescueME PLB1 can be safely carried on board a passenger aircraft as either checked-in or carry on luggage under section 2.3.5.9 of the IATA Dangerous Goods Regulations. The lithium metal battery in the rescueME PLB1 contains less than 2g of lithium and has been tested in accordance with 38.3 of the UN Manual of Tests. Precautions should be taken to prevent accidental activation if placed in checked-in baggage.

Why is the pouch permanently attached to the PLB1 when part number 730S-04077 is purchased?

For Australia and New Zealand, the regulations require that the PLB must float. Because of the small size of the rescueME PLB1, the pouch is used to provide buoyancy and must be permanently attached when supplied in those countries. If you require to remove the pouch for land-based usage, cut the black cord leaving enough length to make a loop to re-attach the pouch or to tie a separate lanyard to.

When I register my EPIRB or PLB is the 0 in the 15 digit HEX ID (UIN) the number 0, or the letter O?

The HEX ID consists of the numbers from 0 to 9 and the letters from A to F only. The character 0 is the number zero.
