Product Description

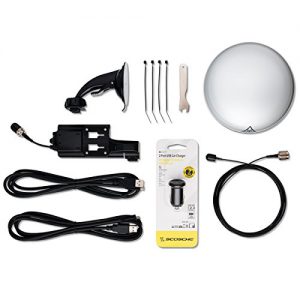

What’s in the box?

The IsatPhone 2 vehicular antenna kit
comes with the following:

Antenna
4m antenna cable (* 7m and 12m cable options are available separately)
2 USB cables

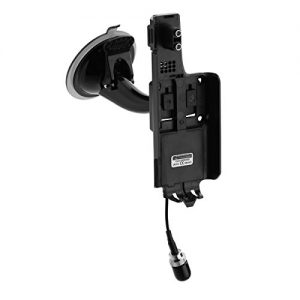

Suction mount

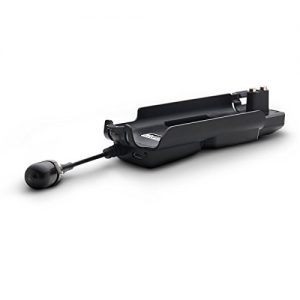

Clip adapter
Dual USB socket

Designed by AeroAntenna Technologies, the external, vehicle-mounted antenna
enables IsatPhone 2 users to enjoy its high quality and uninterrupted voice
connectivity, while on the move. The active antenna provides a constant ‘line-of-sight’ to the Inmarsat-4 global satellite network so that personnel working
in isolated or volatile areas can continue to use IsatPhone 2 while driving their
the vehicle, keeping them in touch, safe, and productive.

Features

- Omni-directional antenna with sleek design
- Dual USB socket that allows you to simultaneously power the antenna and the IsatPhone 2 handset

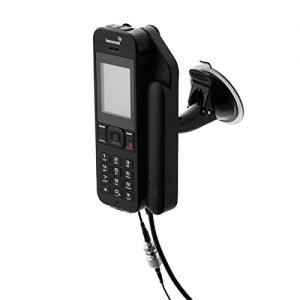

- Suction-mount clip adapter docks the IsatPhone 2 for hands-free communication
- A long, thin ultraflex cable makes it easy to install in any size vehicle

Quick and easy installation

The antenna is designed for quick deployment with no training required:

Insert the dual USB socket into the 12VDC power outlet in your vehicle
Plug one end of the USB cable into the socket and the other into the USB receptacle on the clip adapter
Connect the RF cable to the antenna and place the antenna on the roof of the vehicle
Route the cable into the vehicle and connect the RF cable to the clip adapter

Equipment type: Mobile or fixed base station

CE mark:Yes

Integrated operating environment:Commercial, light and heavy industry

Power supply requirement:9 – 36V maximum

RF input power rating (US & Canada):30 dBm or 1.0 Watt peak (conducted)

EIRP:10.93 dBW Max

TX operating frequency range:1626.5 – 1660.5 MHz

RX operating frequency range:1525.0 – 1559.0 MHz

RF input impedance:50 Ohms

Modulation:G1W

Emission designation:86K1G1W

Antenna type:Integral

Antenna connector type:Inmarsat: SMA (Female) GPS: SMA(Female)

Temperature rating storage (operational):-40°C to +80°C -25°C to +55°C

About IsatPhone 2

IsatPhone 2 provides a clear, dependable voice service, no matter how remote an area you operate out of. The robust handset is engineered to withstand the most extreme conditions. It also offers an unrivaled battery life of up to 8 hours of talk time, and lifesaving safety features, including the tracking and assistance button.

The tracking capability and assistance button keeps people
updated with your GPS coordinates when it matters. These
added features provide invaluable peace of mind for personnel on the
ground, their employers and their families back home.
