Product Description
We are offering the latest Beam IsatDock 2 Drive Pack with ISD715 Active Magnetic Mount Antenna as the perfect solution for the IsatPhone 2 of your Inmarsat. With this package, you can use your satellite phone when safely driving your car. Get clear voice and easy access to data with the easily installed ISD715 antenna on your vehicle’s roof.
Stay connected and always in contact with relatives, friends or colleagues. MUST USE BEAM ACTIVE CABLE KITS WITH THIS BUNDLE.

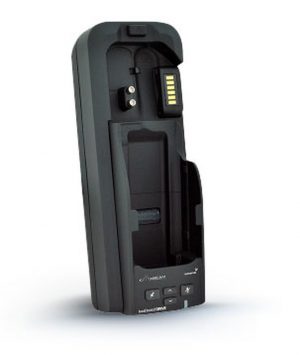

Beam IsatDock2 DRIVE In-vehicle hands-free docking station provides the Inmarsat IsatPhone 2 with a high quality, semi-permanent installation. The docking station has implemented echo cancellation and full-duplex technology to provide superior voice quality and qualified hands-free or privacy calls for different transport applications. Specific warning messages can be activated by pressing the IsatDock2 DRIVE with a single button. It will send your GPS location and the pre-configured message via SMS or email instantly.
The IsatPhone 2 handset fits securely into the dock, its features include phone charging, USB data port, built-in ringer, allowing a permanent connection of antenna and power to the dock ready for use. The IsatPhone 2 handset is easily inserted and removed at the top of the dock by pressing a button, making it very easy to use away from the dock when needed.

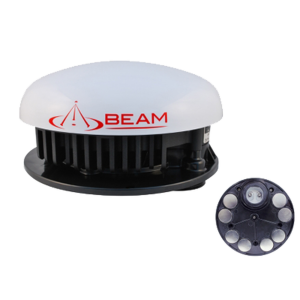

IsatDock ISD715 Magnetic Active Antenna Transport is designed for transportation/land-based applications. Built to work with Beam’s IsatDocks and tracking applications. The antenna is very simple to install and transfer from asset to asset with the Magnetic mount and needs no holes to be drilled to match. The antenna cable link with its outer enclosure is secured from the environment.
Box content of the Beam IsatDock 2 Drive Bundle with ISD 715 Active Antenna
- IsatDock2 DRIVE
- 2 x IsatDock2 Adaptors
- Universal Mounting Bracket (RAM)
- Speaker & Microphone
- 10-32V DC Power Cable
- Magnetic Mount Antenna
Isatphone 2
Specifications
Part No. ISDDAMMA2 Environmental Specifications Battery Charging Temp 0°C to +45°C 32°F to +113°F Operating Range -20°C to +55°C -4°F to +131°F Storage -20°C to +70°C -4°F to +158°F Humidity < -75% RH Connectors / Interfaces Configuration Port USB Micro Antenna TNC-Female GPS Antenna SMA-Female Microphone 2-way microFit Speaker 2-way microFit 10-32 VDC 4-way microFit (AC/DC adaptor, or DC lead) Privacy Handset Port RJ9 connector Power Specifications Average Power Consumption Current @ 12V Average Watts Transmit + Charging 875mA 10.5W Sleep Mode 5mA 60mW Peak Current 3.5mA 42W Standby + Charging 360mA 4.3W Magnetic Transport Antenna Active: Equipment Type Mobile or Fixed Base Station Inmarsat Transmit (operational) 1626.5 to 1660.5 MHz Inmarsat Receive (operational) 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GPS L1) Inmarsat Receive (extended) 1518.0 to 1525.0 MHz Antenna Description Type Transport RF Output Impedance Frequency 50 Ohms Intended Operating Environment Commercial Light Industry & Heavy Industry Inmarsat Transmit (extended) 1668.0 to 1675.0 MHz Temperature -25°C to +55°C
Q: What is the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2?
A: The Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2 is a docking station and antenna system that is designed to work with the IsatPhone 2 satellite phone.
Q: What is included with the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2?
A: The Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2 includes the docking station, an active magnetic antenna, a cigarette lighter power cable, a universal RAM bracket, and a user manual.
Q: Is the IsatPhone 2 satellite phone included with the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2?
A: No, the IsatPhone 2 satellite phone is not included with the docking station and antenna system. It must be purchased separately.
Q: What is the purpose of the active magnetic antenna?
A: The active magnetic antenna provides improved signal strength and call quality compared to the internal antenna of the IsatPhone 2. It can be mounted on the roof of a vehicle or other metal surface for optimal signal strength.
Q: What is the power source for the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2?
A: The docking station can be powered by a 10-32V DC power source, such as a vehicle battery or a solar panel. The cigarette lighter power cable is included for use in a vehicle.
Q: What are some typical applications for the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2?
A: The docking station and antenna system are ideal for use in vehicles, including cars, trucks, and boats, where a hands-free satellite phone solution is required.
Q: Is the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2 easy to install?
A: Yes, the docking station and antenna system are designed for easy installation and can be quickly integrated into a vehicle or other location.
Q: Is the Beam IsatDock 2 Drive w/ Active Magnetic Antenna for IsatPhone 2 waterproof?
A: The docking station is not waterproof, but the active magnetic antenna is rated IP67 for water resistance.
