Even in moderate seas, it is alarming how quickly a visual sighting of a man overboard can be lost. The AISLink MOB’s integrated GPS quickly pinpoints a precise location and transmits this as part of the AIS alert message to all local AIS-equipped vessels. The AISLink MOB also has the ability to alert your crew to the emergency by activating the DSC alarm on your vessel’s VHF. All AIS receivers and AIS-enabled plotters within a 5-mile radius (dependent on conditions) are alerted, and an integrated high-intensity strobe light assists with accurate positioning even in low light conditions. Powerful lithium metal batteries provide 24+ hours of operational life, and the high-impact housing can withstand a drop to the water of 20m.
Note that most modern AIS plotters and DSC VHF units comply with the standards for receiving MOB transmissions. However, it is recommended that you check with your equipment manufacturer to ensure compatibility. DSC functionality may vary — or be disabled entirely — according to the regulations of individual countries.
Features and Benefits:
Dual alert via AIS and DSC Personal Locator
Onboard GPS for exceptional location accuracy

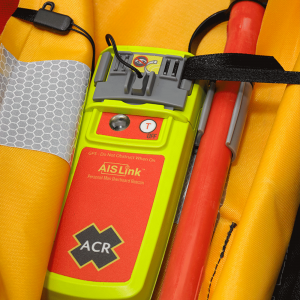

Simple life jacket integration
Manual or Automatic Activation
Alerts AIS-equipped vessels up to 5 miles (4.3 NM) away
24+ hours of operational life and 7 Year battery life
Ultra-bright LED strobe light
Rugged and Waterproof up to 10 meters
Product Description Personal AIS Man Overboard Beacon
Product Number 2886
Activation Method Manual or Automatic Activation
Application Coastal Cruising, Sailing, Offshore Recreational, Commercial Marine Crew Overboard Beacon
Battery Life 7 Years from date of manufacture or after emergency use (24+ hours operational battery life)
Waterproof 10 Meters
Weight 0.2 lbs (92 g)
Warranty 5 Years
GPS Enabled Yes
Dimensions 4.52 x 1.81 x 1.06 in. (115 x 46 x 27 mm)
Strobe LED Strobe Light
Temperature Range (Operational & Storage) Operational: -4°F to +131°F (-20°C to +55°C)
Storage: -22°F to +158°F (-30°C to +70°C)
Frequency AIS channel 1- 161.975 MHz, AIS channel 2 – 162.025 MHz, DSC 156.525 MHz
Transmit Power (EIRP) AIS: 1 Watt, DSC: 0.5 Watt
Baud Rate AIS: 9600 Baud, DSC: 1200 Baud
AIS Messages Message 1 (Position), Message 14 (MOB Status)
AIS Repetition Interval 8 messages/minute (message 14 sent twice every 4 minutes)
DSC Messages Individual Distress Relay (single call made on the press of the activation button, in regions where it is allowed)
DSC Repetition Interval Once every 5 minutes (Relay only)
Your ACR Electronics MOB is warranted against manufacturing defects in materials and workmanship for a period of 5 years from the date of purchase and in accordance with the following conditions.
ACR Electronics will at its discretion, repair or replace the faulty products free of charge excluding the cost of shipping. Proof of purchase shall be required in order for a warranty claim to be valid from the original purchaser. All claims shall be made in writing to ACR Electronics or an approved service dealer or distributor.
ACR Electronics shall not be liable to the buyer under the above warranty:
for any repairs or modifications carried out on the MOB using parts that are not supplied or approved by the manufacturer ACR Electronics including batteries and for work carried out other than by ACR Electronics or approved service dealers,
for any part, material or accessory that is not manufactured by ACR Electronics the consumer will be covered by the guarantee/warranty offered to ACR Electronics by the manufacturer or supplier of such a component,
for the product which has not been fully paid for,
for any product supplied by ACR Electronics to a customer under an alternative warranty or commercial agreement,
for the cost of shipping products to and from the customer.
The Battery is only warranted until the date of expiry and provided the unit is tested in accordance with the information in the user manual. This warranty does not apply to a used battery as indicated by the electronic witness (see section 6.1 of the user manual).
The following specific item is excluded from this warranty:
Damage to the antenna
What test modes does the AISLink MOB have?
There are three test modes on the AISLink MOB; Functional, DSC and AIS/GPS.
The Functional test should be carried out once a month and will display the length of time the battery has been used for. It will also apply a load to the battery to test that the battery is not faulty or has been discharged. It carries out other functional tests on the electronic circuitry. It does not test the GPS or make test transmissions.
The DSC test should be carried out no more than two times a year. This test sends a single DSC transmission to the MMSI programmed into the AISLink MOB, which will be displayed on the vessels DSC radio. It does not send a Distress or Distress Relay call and the call does not contain the position.
The AIS test should be carried out no more than three times a year. This test activates the GPS receiver and after the position is determined it makes an AIS transmission, which will display on a suitable AIS receiver or chart plotter. The received AIS message will show the position determined by the AISLink MOB GPS receiver. There is also a transmission of the AIS text message containing the words “MOB TEST”. Note that this test must be done with the AISLink MOB in full view of the sky. Without a valid position, the AISLink MOB will not transmit any AIS messages.
The limitation on the number of tests a year is to ensure that the battery will still have its full operational life at the expiry date of the battery.
Why does my AISLink MOB show red flashes if I try to program the MMSI number?
If the unit fails to program, showing the flashing red LED on completion, please try again. Turn the AISLink MOB on in programming mode again and retry. There is no need to exit the programming screen on the program. If the programming page is showing, simply press F10 again to commence the programming sequence again.
If you are having problems programming your AISLink MOB, please check the following guidance:
Make sure that your screen brightness is set to maximum, using the controls on the monitor or device.
Ensure that you have commenced programming within 50 seconds of putting the AISLink MOB into programming mode. Failure to do this will cause the AISLink MOB to have turned off before communication starts. Note that once programming has commenced (The white box is flashing) the AISLink MOB should stay on until the programming sequence is completed.
Ensure that the AISLink MOB is placed over the white square with the rubber programming adaptor firmly touching the screen and with the aperture in the rubber close to the center of the white box.
Avoid programming the AISLink MOB in bright ambient light conditions. If necessary point the screen away from direct or bright sources of light such as sun through a window. In extreme circumstances, especially with older screens that have lost their brightness, place a thick cloth over the screen and AISLink MOB to block out the ambient light.
The AISLink MOB configuration software requires precise timing, which may be disrupted by other applications running at the same time, especially on slower computers. If you still encounter problems, try shutting down all unnecessary applications, including anti-virus software.
Which DSC radios are compatible with the AISLink MOB?
ACR recommends using one of the radios from the list below with the AISLink MOB. The following class D DSC radios have been tested in cooperation with the manufacturer and confirmed to receive the Individual Distress Relay call.
Current models; M91, M323, M423, M506
Older models; M411, M421, M505, M603
Standard Horizon: The factory has confirmed the following models are compatible:
V4.xx (GX5500S only),
V4.xx (GX2150/GX2000 only)
V1.xx (GX2200 only)
Class A DSC radios have always been able to receive this call and all models are believed to be compatible.
This list is not exhaustive and will be added to as more compatible models are confirmed.
ACR welcomes inquiries from other manufacturers wishing to have their radios listed here.
What DSC functions are allowed in my country?
The DSC functionality of the AISLink MOB is limited by regulations in each country. The list below indicates which functions you may expect.
AIS only: Canada, France, Denmark, Latvia
AIS + DSC Individual Distress Relay call plus group call sent after 30 minutes: USA
AIS + DSC Individual Distress Relay call only: Germany, Netherlands, United Kingdom
AIS + DSC Individual Distress Relay, All Ships Distress Alert (manual initiation): All other European countries
AIS + DSC Individual Distress Relay, All Ships Distress Alert, sent once on AISLink MOB activation and on manual initiation: Rest of the World.
