Lars Thrane Iridium LT-3100S GMDSS Terminal

Product Description

The Lars Thrane LT3100S GMDSS system is Iridium‘s premier satellite GMDSS security and emergency communications solution and offers the world’s first and only truly global GMDSS solution. Terminal, the LT3100S GMDSS system can be used as the main satellite communication product on ships, covering basic communication needs in terms of ship-to-shore connectivity. The LT3100S GMDSS system also offers voice, SMS, data, vessel tracking, and other Iridium services at competitive airtime, making it the perfect satellite communications product onboard any vessel.

In 2018, the IMO’s Maritime Safety Committee (MSC) recognized Iridium as a provider of GMDSS satellite services. In early 2020, these GMDSS services, hereunder: Distress Alert, Safety Voice, and Maritime Safety Information (MSI) will be available via the LT-3100S GMDSS system, a terminal developed by Lars Thrane A/S.

The LT-3100S GMDSS system is designed for all IMO vessels and will be an alternative to the Inmarsat C. The LT-3100S GMDSS system meets all standards and certification requirements needed for worldwide maritime satellite communications equipment (MED, Wheelmark).

PERFORMANCE

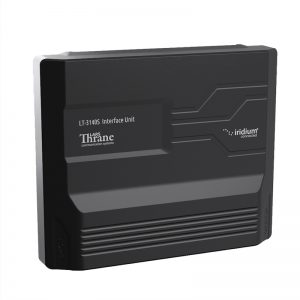

The LT-3100S GMDSS system has voice and data capabilities with 100% global coverage. The LT-3100S GMDSS system consists of a control unit, handset, and antenna unit. A single cable solution connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500 meters of separation between the units can be obtained, giving freedom to mount the antenna in the best possible location, with a free line of sight to the satellites.

The LT-3100S GMDSS system is designed for the Iridium GMDSS Safety Services and can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore. The LT-3100S GMDSS system also provides voice, SMS, data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.

The LT-3100S GMDSS System is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).

INSTALLATION

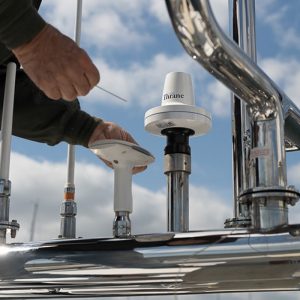

The LT-3100S GMDSS system is very easy to install. Everything is included in the box to get started with the installation and operation of the LT-3100S GMDSS system. The control unit can be installed using either a bracket mount or a flush mount. The antenna unit can be mounted using either a pole mount (1.5″ tube) or an angle bracket mount (1″ to 2.5″ tube). The control unit has a large 4.3″ TFT display, from where the system can be operated with overview and ease. The built-in web server can be used for service and maintenance.

More than 40 years of experience have been put into the design and construction of the LT-3100S GMDSS system, with exceptional performance and specification level.

SOLAS GMDSS Approved (Sea Areas A1, A2, and A3
100% Global Distress Coverage
Distress Alert & Distress Call
Safety Calling & Safety Messaging
Maritime Safety Information (MSI)

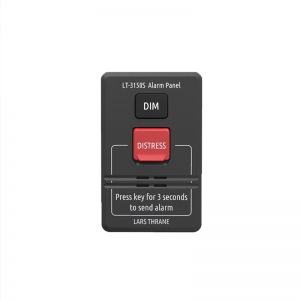

Support for remote Alarm Panels
Support for GMDSS Printer
Support for Bridge Alert Management (BAM)
Ship Security Alert System (SSAS)
Long Range Identification and Tracking (LRIT)
Voice, SMS, & Modem Data
Single antenna cable solution (up to 500 m)
High-performance GNSS/GPS receiver
Webserver for configuration and maintenance
MED Module B+D, RED(CE), FCC, ISED, ROHS2, Iridium

Q: What is the Lars Thrane Iridium LT-3100S GMDSS Terminal?
A: The Lars Thrane Iridium LT-3100S GMDSS Terminal is a satellite communication device designed for use in marine environments. It is compliant with the Global Maritime Distress and Safety System (GMDSS) and can be used to send and receive distress alerts, as well as make and receive voice and data communications via the Iridium satellite network.

Q: What features does the Lars Thrane Iridium LT-3100S GMDSS Terminal offer?
A: Some features of the Lars Thrane Iridium LT-3100S GMDSS Terminal include:

GMDSS compliant
Voice and data communication via the Iridium satellite network
Distress alerting capability
Compact and lightweight design
Easy to install and operate
Q: How do I install the Lars Thrane Iridium LT-3100S GMDSS Terminal?
A: Installation of the Lars Thrane Iridium LT-3100S GMDSS Terminal should be performed by a qualified technician. It requires a connection to a power source and an antenna, which should be installed according to the manufacturer’s instructions.

Q: How do I use the Lars Thrane Iridium LT-3100S GMDSS Terminal to send a distress alert?
A: To send a distress alert using the Lars Thrane Iridium LT-3100S GMDSS Terminal, follow these steps:

Press and hold the DISTRESS button for at least 5 seconds.
The terminal will automatically transmit a distress alert via the Iridium satellite network.
The terminal will also sound an alarm to alert those nearby that a distress alert has been sent.
Q: Is the Lars Thrane Iridium LT-3100S GMDSS Terminal waterproof?
A: The Lars Thrane Iridium LT-3100S GMDSS Terminal is designed to withstand exposure to water, but it is not waterproof. It should not be submerged in water or exposed to heavy spray.

Q: How do I place a voice call using the Lars Thrane Iridium LT-3100S GMDSS Terminal?
A: To place a voice call using the Lars Thrane Iridium LT-3100S GMDSS Terminal, follow these steps:

Press the GREEN button to activate the terminal.
Dial the phone number using the keypad.
Press the SEND button to place the call.
To end the call, press the END button.
