Name: Kyway U7 8W BUC terminal with Modem
Brand: Kyway
Availability: InStock
Rating: 5 (1 reviews)

Description
Feature & Specs
FAQ

Product Description

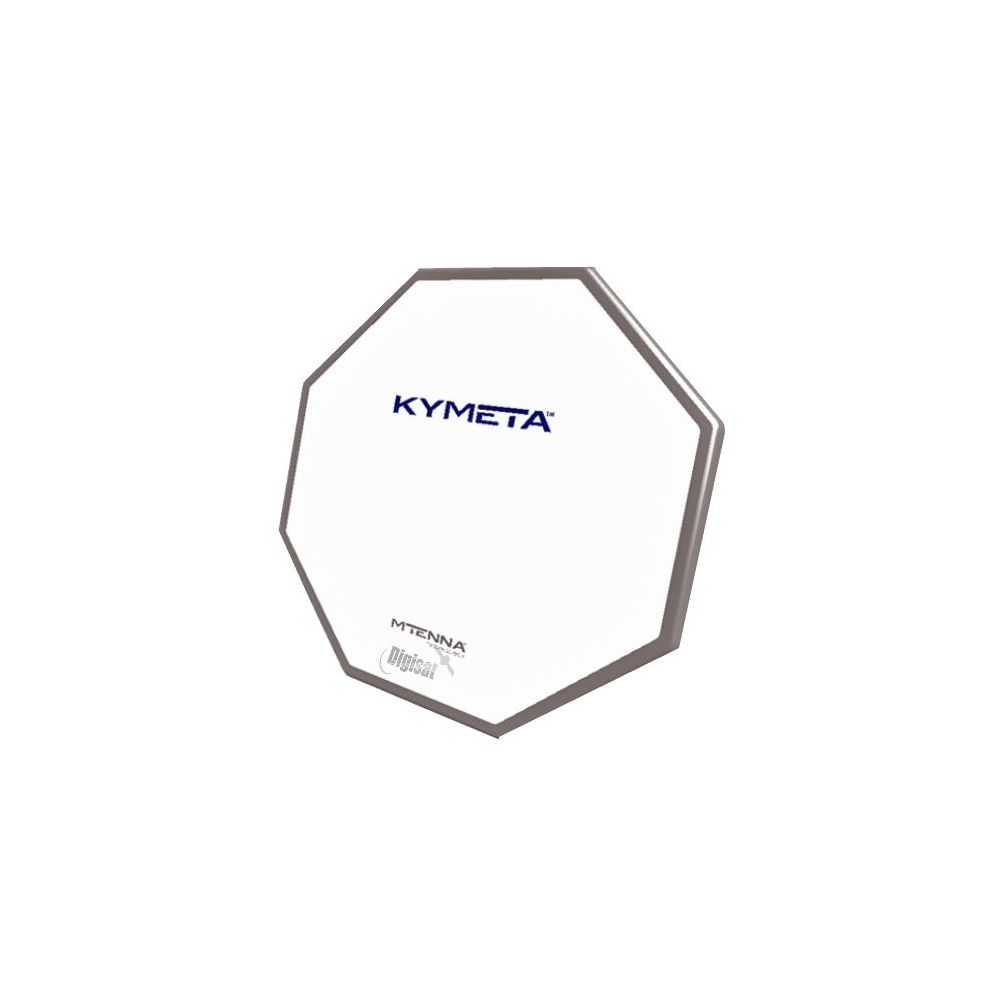

Kymeta™ u7 Ku-band satellite terminal addresses the need for lightweight, low-profile, and high throughput communication systems on the move. The u7 terminal makes connectivity for nearly any vehicle, vessel, or fixed platform easier and more reliable than ever before. KĀLO™ network services from Kymeta can be bundled with Kymeta u7 terminals and purchased in flexible, variable usage packages that utilize familiar and easy-to-understand data plans. The Kymeta u7 satellite terminal with KĀLO service plans delivers an economical, end-to-end, mobile broadband solution.

Features Kyway U7 8W BUC terminal with Modem

Robust – Hardened and proven to work in land-mobile and maritime environments.
Easy – Satellite technician not required for installation, setup, commissioning, and provisioning
Reliable – Solid-state electronically-steered antenna, no gimbals or motors required
Agile – Fast tracking, on-the-move connectivity supports mobile broadband

TERMINAL FEATURES

Simple power-on startup and auto-acquisition for easy operation; auto-commissioning available for KĀLO service
Low-power electronic beam steering for low maintenance and fast, reliable connectivity
Over-the-air (OTA) software updates
Cloud-based customer portal for support and service management tools with APIs for simple integration
Flat panel for low-profile installation options
Flexible mounting solutions for vessels and vehicles
Kymeta now has a u7 antenna that supports RX operational frequencies in the upper range of the Ku band (11.85 GHz to 12.75 GHz) supporting customers in ITU Region 3
In addition, Kymeta now has a u7 antenna with extended operational temperatures up to +65 °C that supports RX operational frequencies in the Ku-band range of 11.2 GHz to 12.1 GHz
The Kymeta u7 terminal can be configured as an all-outdoor system (with the exception of the modem) with the power supply and all interconnects mounted on the back of the antenna

ANTENNA
Band	Ku
Antenna type	Electronically scanned array
Polarization	Vertical and horizontal, software defined
RX frequency range	11.4 GHz to 12.3 GHz
G/T (broadside)	9.5 dB/K)
TRX instantaneous bandwidth >	>100 MHz
RX scan roll-off @ 60°	>Cos^1.1-1.2
TX frequency range	>e 14.0 GHz to 14.5 GHz
EIRP (broadside)8	8 W BUC: 41.5 dBW,16 W BUC: 44.5 dBW
TX instantaneous bandwidth	>100 MHz
TX scan roll-off @60	Cos^1.2-1.4

TRACKING
Tracking rate	>20°/second
Scan angles	Theta up to 75° off broadside and Phi 360°
Accuracy	0.2°
Mobile tracking accuracy	FCC compliant for 25.222 and 25.226
Tracking receiver type	Integrated DVB-S2

ENVIRONMENTAL
Outdoor unit operational temperature	>-25°C to +55°C
Outdoor unit storage temperature	-40°C to +75°C
Outdoor unit ingress protection	IP 66
Outdoor unit shock	IEC 60068-2-27
Outdoor unit vibration	MIL-STD-167-1A MIL-STD 810G IEC 60068-2-64 IEC 60068-2-57
Indoor unit operational temperature	-0°C to +50°C
Indoor unit storage temperature	-40°C to +75°C
Indoor unit ingress protection	IP20
Indoor unit shock	IEC 60068-2-27
Indoor unit vibration	MIL-STD-810G
Indoor unit BTU/hr 8 W BUC	Typical 1025 \| Peak 1700
Indoor unit BTU/hr 16 W BUC	Typical 1375 \| Peak 2050

MECHANICAL
Outdoor unit dimensions	L 82.3 cm x W 82.3 cm x D 16.5 cm L 32.4 in. x W 32.4 in. x D 6.4 in.
Outdoor unit weight	21.1 kg \| 46.5 lb.
Outdoor unit mounting interface	4 x M8 x 1.25 mounting standoffs 0.95 cm \| 0.375 in. deep
Mobile tracking accuracy	W 44.5 cm x D 31.75 cm x H 9.06 cm W 17.5 in. x D 12. 5 in. x H 3.57 in.
Indoor unit weight	6.35 kg \| 14.0 lb.

POWER AND RF SYSTEM
Input power	110-240 VAC 50/60 Hz
8 W BUC	Typical 300 W \| Peak 500 W
16 W BUC	Typical 400 W \| Peak 600 W

INTERFACES
Network interface	RJ45 10/100/1000
RF cables	N-type connectors

ACCESSORIES
Interface cables	Available in 3.66 m, 7.62 m, 15.24 m 12 ft., 25 ft., 50 ft.
RF cables	Available in 3.66 m, 7.62 m, 15.24 m 12 ft., 25 ft., 50 ft.

Q: What is the Kyway U7 8W BUC terminal with Modem?

A: The Kyway U7 8W BUC terminal with Modem is a satellite communication device that allows users to connect to the internet and send and receive data via satellite. It is designed for use in locations where terrestrial internet connections are not available.

Q: What is the coverage area of the Kyway U7 8W BUC terminal with Modem?

A: The coverage area of the Kyway U7 8W BUC terminal with Modem depends on the satellite network it is connected to. It is designed for global coverage, but signal strength and availability may vary in different regions.

Q: What is the maximum data transfer speed of the Kyway U7 8W BUC terminal with Modem?

A: The maximum data transfer speed of the Kyway U7 8W BUC terminal with Modem is 8 Mbps downstream and 2 Mbps upstream. These speeds may vary depending on a number of factors, including the satellite network, the distance to the satellite, and the local weather conditions.

Q: Is the Kyway U7 8W BUC terminal with Modem compatible with all satellite networks?

A: The Kyway U7 8W BUC terminal with Modem is designed to be compatible with a range of satellite networks, but it may not be compatible with all networks. It is recommended to check with the manufacturer or your satellite service provider to confirm compatibility.

Q: Is the Kyway U7 8W BUC terminal with Modem easy to install?

A: The Kyway U7 8W BUC terminal with Modem is designed for easy installation by users with basic technical skills. It comes with a manual and installation instructions, and support is available from the manufacturer if needed.
