Intellian GX60 Maritime Stabilized Terminal

In stock

From: $34,000.00 $28,999.00

The GX60, by Intellian, is a small maritime stabilized terminal built to work on the Inmarsat Global Xpress (GX) broadband service.  It comes with a fully integrated modem that makes the GX60 easy to install, quickly bringing you a high speed connection.

  • Satellite terminal is fully integrated to include the modem and provide quick connectivity
  • Compact size reduces installation time and expense by removing the requirement for a crane
  • Small terminal with download speeds up to 50Mbps
  • Control & manage remotely with Aptus over Wi-Fi

Fleet Xpress Plans - 60cm

Clear

Specs & Features

Product Description

Intellian GX60

Simple and Quick Installation

The Intellian GX60 is a small, integrated design and easy-to-understand user interface means you can install and commission it in the same time it would take to install a FleetBroadband system.  Your operators will not need to rely on shore-based cranes and face logistical challenges or extended time at port like they would installing other satellite communications systems.  And with speeds up to 50Mbps, you get a lot of value for your investment in the Intellian GX60.

Complete Communications Terminal

The GX60’s integrated design condenses multiple components, like you find in standard VSAT, into a single box, freeing up valuable storage space on board.

A Global Xpress Modem is integrated into the GX60 Below Deck Terminal (BDT), along with an 8 port Ethernet switch.  This allows a direct IP connection to a standard Wi-Fi router or to your vessel’s existing onboard network-ready devices.  Using the built-in Wi-Fi antenna in the BDT, you can wirelessly connect to your PC or mobile device to control and monitor your terminal using Intellian’s Aptus app.

The Perfect Choice For Global High-Speed Communications

Inmarsat’s GX service represents a clear path to finally achieving the same level of connectivity offshore as you have at home or in the office.

Intellian was chosen by Inmarsat as an official GX partner to ensure a smooth, easy transition for vessel operators from legacy services to this next generation capability. From the easily upgradable v100GX to the compact GX60, Intellian’s full line of GX-ready products features a simple, intuitive, graphically-based antenna remote control software, which includes features such as remote management and control from anywhere in the world, and one-touch commissioning.

Intellian’s GX-capable products make satellite communications easy.



If you are looking for faster speeds try the Intellian GX100

Downloads

Intellian GX60 Datasheet
Intellian GX60 Manual

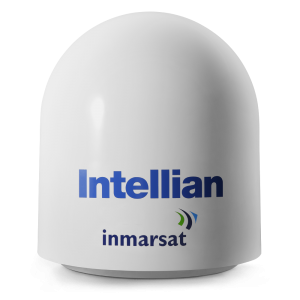

RADOME & ANTENNA
Radome Height 103 cm (40.5 inch)
Radome Diameter 90 cm (35.5 inch)
Reflector Diameter 65 cm (41 inch )
Weight Approx. 60 kg (132 lbs)

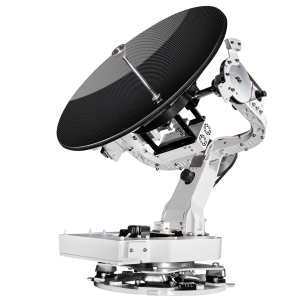

PEDESTAL TYPE | 3-AXIS (AZIMUTH, ELEVATION, CROSS-LEVEL)
Azimuth Range Unlimited
Elevation Range -20° ~ 115°
Cross Level Range Up to ±37°
Motor Brake System Elevation, Cross Level



TX FREQUENCY | 29.00~30GHZ KA-BAND
TX Gain 43.75 dBi @ 29.5GHz w/ Radome
RX Frequency 19.2~20.2GHz Ka-band
RX Gain 40 dBi @ 19.7GHz w/Radome
G/T > 16.2 dB/K (min.)
BUC Power 5W Ka-Band BUC
LNB Ka-Band LNB (L.O. 18.25GHz)
Polarization Circular, Tx:RHCP Rx:LHCP



BELOW DECK TERMINAL
Dimensions (W × D × H) 43.1cm × 44.1cm × 4.4 cm (17 inch × 17.3 inch × 1.7 inch)
Weight 4 kg (8.8 lbs)
Display 2 line 40 character graphic VFD module
Ship’s Gyrocompass Interface NMEA / NMEA 2000
Modem Interface IIntegrated Global Express core module
Remote Management Yes
Wi-Fi Operation Yes
Management Port Yes
Power Requirement 100~240V AC, 50~60Hz, 1A

Compare Intellian GX Maritime Terminals

Model GX60 / GX60HP GX100 / GX100HP GX100PM V100GX
System GX Terminal System GX Terminal GX Terminal GX Convertible Antenna System
Radome Dimension (WxH) 90x103cm (35.5×25.6in) 138×151.4cm (54.3×59.6in) 138×151.4 (54.3×59.6in) 138×151.4cm (54.3×59.6in)
Reflector Diameter 65cm (25.6in) 103cm (41in) 103cm (41in) 103cm (41in)
Antenna Wieght Approx. 60kg / 132lbs 128 (282 lbs) 113.3 kg (249.78lbs) 127.4kg (280.8lbs)
Elevation Range -20 to 115 -20 to 115 -20 to 115 -20 to 115
Cross-Level Range Up to +37 Up to +37 Up to +37 Up to +37
Turn Rate Up to 2 Deg/Sec N/A N/A Up to 2 Deg/Sec
TX Frequency 29 to 30GHz Ka-band 29 to 30GHz 29 to 30GHz 13.75 to 14.5GHz Ku-band
RX Frequency 19.2 to 20.2 GHz Ka-Band 19.2 to 20.2 GHz 19.2 to 20.2 GHz 10.7 to 12.75 GHz Ku-Band
TX Grain 43.75 dBi @ 29.5 GHz w/ Radome 47.7dB 47.7dB 41.6dBi @ Mid band
RX Grain 40 dBi @ 19.7 GHz w/ Radome 43.7Db 43.7Db 39.4dBi @ Mid band
LNB Pol Control Circular, Tx:RHCP Rx:LHCP Circular, Tx:RHCP Rx:LHCP Circular, Tx:RHCP Rx:LHCP Cross-pol & Co-pol as standard
Cross-Pol Isolation Min 35 dB Tx: 29dBW Rx:24dBW Tx: 29dBW Rx:24dBW >35 dB @ beam center

GX60 Features

Integrated BDT

  • Single rack mounted unit containing Antenna Control Unit and Global Xpress modem
  • Wi-Fi enabled for wireless management and control via Aptus
  • One Touch Commissioning

    • Simple setup and activation
    • Aptus provides an intuitive, graphical interface

    8 Port Ethernet Switch

    • No external network switch required
    • Turn key connectivity

    Precision Reflector and Frequency Tuned Radome

    • Precision composite reflector counteracts warping due to temperature variation
    • Radome engineered to provide superior RF performance in Ka-band

    Gyro-Free Satellite Search Capability

    • No external heading device input required
    • Reduces installation time, automated Bow offset using Aptus

    Remote Access via Aptus

    • Built-in web interface for remote management, control and updating brings tech support aboard the vessel
    • Automated Diagnostics including internal Spectrum Analyzer

    Global Support

    • 3-Year Global Warranty backed by over 300 Intellian Service and Support centers around the world

    Downloads

    Intellian GX60 Datasheet
    Intellian GX60 Manual
