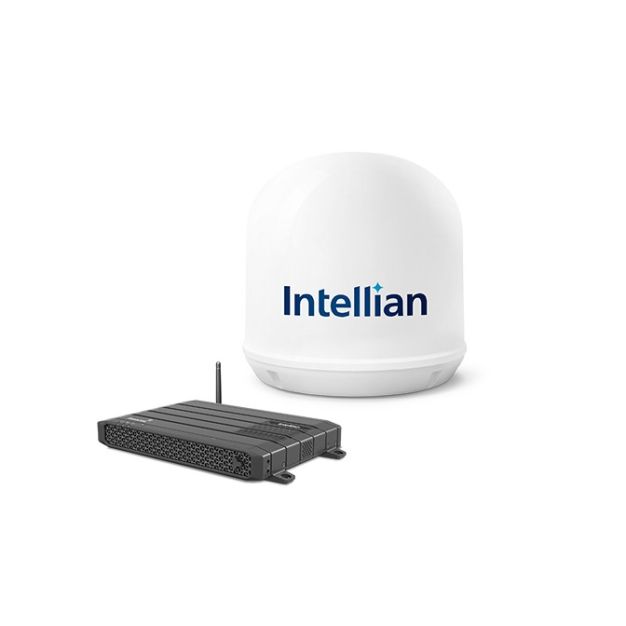

Intellian Fleet One

Product Description

MARITIME TERMINAL FOR INMARSAT

FLEET ONE SERVICE
Intellian Fleet One is the perfect terminal for Inmarsat’s Fleet One service which enables simultaneous voice and data connectivity up to 150 Kbps. Intellian Fleet One ensures resilient and reliable connectivity at sea.

SECURED SAFETY AT SEA
Intellian Fleet One provides all the necessary features related to safety at sea. The Inmarsat 505 Emergency Calling which in an emergency directs a call straight through to an MRCC.
In addition, Intellian Fleet One is ready for the new Inmarsat GMDSS, Maritime Safety Terminal (MST). This Fleet One and MST package provides not only safety functionalities
but also features such as navigation and location-based services.

SIMPLE AND EASY
The Intellian Fleet One is simple and easy to install and use. The lightweight antenna can be carried on board quickly and only a single RF cable ensures a reliable connection. AptusLX offers a user-friendly UX and is accessible via LAN and Wi-Fi from a smartphone or tablet.

PHYSICAL

ADU Dimensions 291.1 x 294.5 mm / 11.5″ x 11.6″
ADU Weight 4.9 kg / 10.8 lb
BDU Dimensions 280 x 190 x 41 mm / 11.0′′ x 7.5′′x 1.45′′
BDU Weight 1.2 kg / 2.6 lb

POWER

DC Input 10.8 ~ 30 V DC
Power (max) 120 W

RF / ANTENNA

Tx Frequency 1626.5 MHz ~ 1675.0 MHz
Rx Frequency 1518.0 MHz ~ 1559.0 MHz
G/T > -15.5 dB/K
Antenna Connectors TNC male (ADU) – TNC male (BDU)
Wi-Fi 802.11 b/g

I/O

LAN 2x RJ45 (2x PoE)
WAN NA
Analog Phone 1x RJ14 (2x Analog Phone)
Wireless 1x Wi-Fi (SMA RP)
General Purpose I/O 10 Pin GPIO

ENVIRONMENTAL CONDITIONS

Operating Temperature ADU: -25°C ~ + 55°C
BDU: -15°C ~ + 55°C
Operating Humidity > 95% non-condensing at +40°C
Water Ingress ADU: IP56
BDU: IP31

INMARSAT SERVICES

Voice 1x Voice line
Standard IP Up to 150 kbps
Streaming IP NA
SMS Up to 160 characters
