Beam IsatDock 2 Marine Docking Station for IsatPhone 2

In stock

$1,454.99

Beam IsatDock 2 Marine Docking Station for Isatphone 2 is an IP54-rated smart docking station for the IsatPhone 2 developed specifically for maritime use.

SKU: BEAM-ID2-MAR

Specs & Features

Product Description

Beam IsatDock 2 Marine Docking Station for Isatphone 2 is an IP54-rated smart docking station developed specifically for maritime use. The MARINE Dock supports voice services via Bluetooth, RJ11/POTS, hands-free, or active privacy handset.

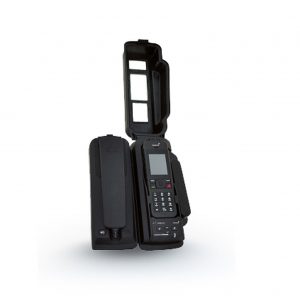

The IsatPhone 2 is entirely enclosed in the docking unit, while also allowing the user full access and functionality. It supports the IsatPhone 2 handset’s Personal Alert & Assistance Warning feature. Specific warning messages can be activated by pressing the IsatDock2 DRIVE with a single button.

It will send your GPS location and the pre-configured message via SMS or email instantly. Also, the MARINE Dock allows the installation of an external pendant or alarm button that can be placed in a convenient spot.

The IsatDock2 MARINE enables the IsatPhone 2 handset to be used in a wide range of maritime applications, whereas the intelligent RJ11/POTS interface allows cable runs of up to 600 m to connect standard corded, cordless or DECT handsets to be used or interfaced with a PBX network providing standard ring, busy and dial tones as a standard telephone device.

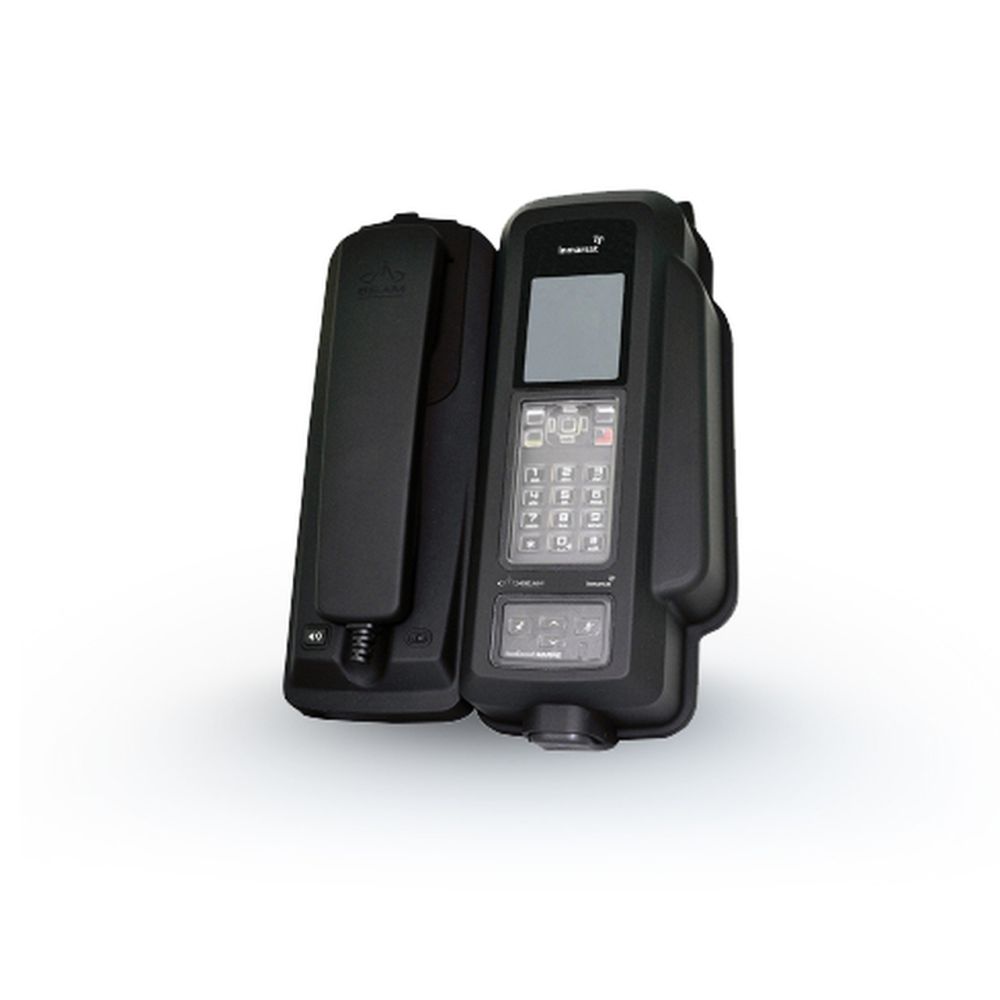

The IsatPhone 2 handset fits securely in the dock, its features include telephone charging, USB data port, built-in ringer, allowing antenna and power to be connected permanently to the Dock ready for use.

All-in-One Docking Station
The MARINE Dock supports voice services via Bluetooth, RJ11/POTS, hands-free speakerphone, or the active privacy handset inbuilt to the terminal.  The IsatPhone 2 is completely enclosed in the docking unit whilst still giving full access and functionality to the user maintaining the IP54 rating of the handset.
Intelligent RJ11/POTS Interface
The intelligent RJ11 / POTS interface enables standard corded, cordless or DECT handsets to be used or interfaced with a PABX system presenting standard ring, busy and dial tones up to 600m or 2000’ from the dock itself.
Key Benefits and Features
• High-quality Marine Grade design
• Bluetooth connectivity, via IsatPhone 2
• RJ11/POTS interface, cable runs up to 600m/2000ft
• Dedicated Privacy Handset
• Voice, SMS and Circuit Switched Data capable
• Tracking and SOS (Via the ISatPhone 2 handset)
• USB data interface
• Accessory / Ignition sense
• 10-32V DC power input
• AC Plug pack included 110/240 input
• Supports Active and Passive Inmarsat antennas
• Full certified, Inmarsat, RoHS, CE, IEC60945, AS/EN60950
• 2-year repair or replacement warranty
Instant Message and Tracking Features
• Dedicated internal GPS receiver
• Tracking:
• Periodic location messages
• SMS, SMS to email
• Location message sent upon button press
• Ignition ON/OFF reporting
• Remote location polling via SMS Instant Message Mode
• Single button press on terminal
• Instant GPS location messages
• Supports external “man down” pendant or button
• Remote clearing of alert via SMS
• Tracking/Instant Message



Isatphone 2

Power

Average Power Consumption Current @ 12V Average Watts
Power w/o IsatPhone 2 130mA 1.6W
Standby + Charging 360mA 4.3W
Transmit + Charging 875mA 10.5W
Sleep Mode 5mA 60mW
Peak Current 3.5A 42W

I/O Alarm/Alert

Track In-built – single key press
1 x Alarm Loop Bare wire – Normally Closed loop IN to OUT

Connectors / Interfaces

POTS/RJ11 RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.
Antenna TNC-Female
GPS Antenna SMA-Female
10-32 VDC 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port RJ9 connector
Configuration / Data USB Micro
Speakerphone In-built speaker/microphone
LEDs/Buttons Status LED, Personal Alert/Track, Mute, Speakerphone, Up and Down

Environmental

Temperature Degrees °C Degrees °F
Operating Range -30°C to +70°C -22°F to +158°F
Storage -35°C to +85°C -31°F to +185°F
Battery Charging 0°C to +45°C 32°F to +113°F
Humidity <= 75% RH

Physical

Dimensions mm inches
Unit 276L x 208W x 100H 10.87L x 8.18W x 3.93H
Outer Box 330W x 190D x 230H 13W x 7.5D x 9.1H
Weight kg lbs
Dock 1.67 3.67
Box 2.72 5.99

Kit Contents

IsatDock2 MARINE

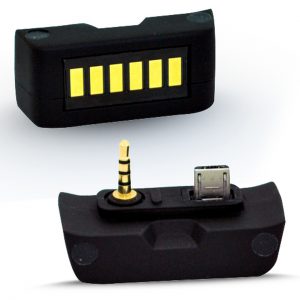

2 x IsatDock2 Adaptors
10-32 DC Power Cable
110-240V AC Plug Pack
Privacy Handset
2m Alert wiring loop
Wall mounting plate
User Manual
Quick Start Guide

Certifications

Inmarsat Type Approval
EMC Compliance
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating 5 = Protected against dust limited ingress (no harmful deposits). 4 = Protection against water sprayed from all directions – limited ingress permitted.
