Product Description

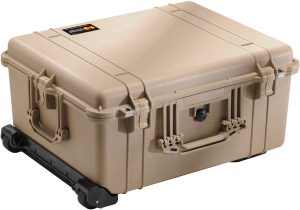

Pelican 1610 Protector Case

As you find yourself with a range of satellite communication devices that need to go wherever you do, you need a reliable storage solution that will keep them protected no matter what. You also want a solution that is easily transportable with all that equipment. The Pelican 1610 shares a similarly rugged design to other Pelican cases, but wheels have been added to make it easier to get around as you travel remotely.

Sensitive equipment needs protection, and since 1976 the answer has been the Pelican™ Protector Case. These cases are designed rugged and travel the harshest environments on earth. Pelican cases have survived against the extreme cold of the arctic or the heat of battle.

Made in the USA, these tough cases are designed with an automatic purge valve that equalizes air pressure, a watertight silicone O-ring lid, over-molded rubber handles, and stainless steel hardware.

Pelican 1610 Protector Case Specifications

Watertight, crushproof, and dustproof
Strong polyurethane wheels with stainless steel bearings
3 level Pick N Pluck™ with convoluted lid foam
Open cell core with solid wall design – strong, lightweight
Retractable extension handle
Fold-down handles
Automatic Pressure Equalization Valve – balances interior pressure, keeps water out.
Easy open Double Throw latches
Stainless steel hardware and padlock protectors
O-ring seal

The depth of this case allows you to customize three foam layers to house your necessary satellite equipment. Ample storage means storing a BGAN terminal such as the 510, satellite phone, laptop, and essential accessories.

Interior (L×W×D)21.78 x 16.69 x 10.62 in

(55.3 x 42.4 x 27 cm)

Exterior (L×W×D)24.83 x 19.69 x 11.88 in

(63.1 x 50 x 30.2 cm)

Lid Depth2.05″ (5.2 cm)

Bottom Depth8.57″ (21.8 cm)

Total Depth10.62″ (27 cm)

Int Volume2.23 ft³ (0.063 m³)

Padlock Hole Diameter5/16″ (8 mm)

Weight With Foam22.30 lbs (10.1 kg)

Weight Empty19.50 lbs (8.8 kg)

Buoyancy119.93 lbs (54.4 kg)

Wheels2

Extendable Handleyes

Body MaterialPolypropylene

Latch MaterialABS

O-Ring MaterialPolymer

Pins MaterialStainless Steel

Foam Material1.3 lb Polyurethane

Purge Body MaterialABS

Purge Vent Material3 Micron Hydrophobic Non-Woven

Foam Layer 1 (Lid)2.00″ (5.1 cm) – Convolute

Foam Layer 2 (Base)1.50″ (3.8 cm) – Pad

Foam Layer 3 (Base)2.38″ (6 cm) – Pick N Pluck

Foam Layer 4 (Base)2.38″ (6 cm) – Pick N Pluck

Foam Layer 5 (Base)2.38″ (6 cm) – Pick N Pluck

Minimum Temperature-40° F (-40 ° C)

Maximum Temperature210° F (99 ° C)

Q- How to replace pelican 1610 wheels?
A-

Q- Is pelican 1610 carry-on?
A- Yes

Q-Pelican 1610 dimensions
A-Interior (L×W×D)21.78 x 16.69 x 10.62 in
(55.3 x 42.4 x 27 cm)Exterior (L×W×D)24.83 x 19.69 x 11.88 in
(63.1 x 50 x 30.2 cm)

Q-pelican 1610 specs?
A-Interior (L×W×D)21.78 x 16.69 x 10.62 in
(55.3 x 42.4 x 27 cm)
Exterior (L×W×D)24.83 x 19.69 x 11.88 in
(63.1 x 50 x 30.2 cm)
Lid Depth2.05″ (5.2 cm)
Bottom Depth8.57″ (21.8 cm)
Total Depth10.62″ (27 cm)
Int Volume2.23 ft³ (0.063 m³)
Padlock Hole Diameter5/16″ (8 mm)
Weight With Foam22.30 lbs (10.1 kg)
Weight Empty19.50 lbs (8.8 kg)
Buoyancy119.93 lbs (54.4 kg)

Q-Pelican 1610 weight?
A-23.6 lb / 10.7 kg

Pelican 1610 vs 1510 vs 1620

Compare	Pelican 1610	Pelican 1510	Pelican 1620
Interior (L×W×D)	21.78 x 16.69 x 10.62 in	19.75 x 11.00 x 7.60 in	21.48 x 16.42 x 12.54 in
Exterior (L×W×D)	24.83 x 19.69 x 11.88 in	22.00 x 13.81 x 9.00 in	24.76 x 19.57 x 13.90 in
Lid Depth	2.05″ (5.2 cm)	1.79″ (4.5 cm)	2.01″ (5.1 cm)
Bottom Depth	8.57″ (21.8 cm)	5.79″ (14.7 cm)	10.53″ (26.7 cm)
Total Depth	10.62″ (27 cm)	7.58″ (19.3 cm)	12.54″ (31.9 cm)
